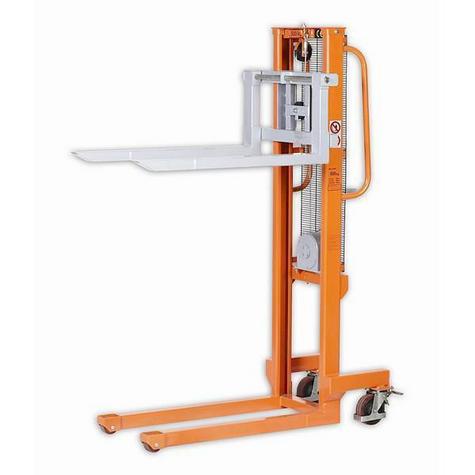

Warrior WS50 500Kg Winch Stacker

Product Information

The Warrior winch stacker is a compact, service free stacker with a unique winch design for easier and safer lifting.
This stacker will work happily with open bottomed pallets e.g. Europallets and Stillages, but they will not work with 'Full Perimeter Board' pallets.

• Heavy duty 'C' section mast
• Adjustable fork width from 160mm to 690mm
• 2 parking brakes on steer wheels
• Conforms to BSEN1757-1:2001

Specifications

• 500kg capacity
• Load centre 500mm
• Maximum lift height 1560mm
• Minimum fork height 90mm
• Adjustable for width 160mm-690mm
• Fork width 70mm
• Fork length 1000mm
• 1325mm length x 725mm width x 2030mm height
• 12 months on site parts and labour warranty
