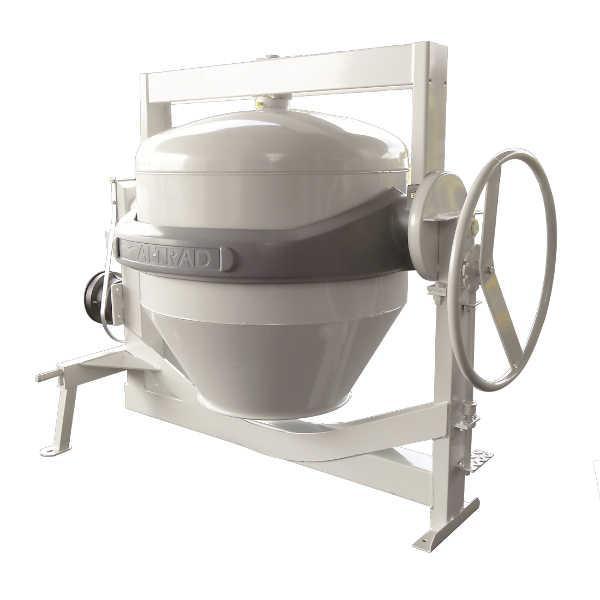

The Altrad Belle AG350GF is a robust, tractor-mounted concrete mixer designed for agricultural and construction applications. Its compatibility with most tractors via a three-point hitch and PTO drive allows for efficient mixing of large batches of concrete and mortar directly on-site, enhancing productivity and flexibility.
Constructed with a fabricated steel drum reinforced at both the bottom and mouth, the AG350GF ensures durability under demanding conditions. The mixer features three double mixing blades, optimizing the mixing process for consistent results. Its foot-operated tipping lock provides operators with safe and controlled discharge of materials. Additionally, the cast ring gear and drive pinion, along with full protection of the crown ring gear, contribute to the mixer's longevity and reliability.
| Specification | Details |
|---|---|
| Model | AG350GF |
| Power Source | Tractor PTO (Power Take-Off) |
| Drum Volume | 340 litres |
| Mixing Capacity | 280 litres |
| Drum Speed | 23 rpm |
| Dimensions (W x H x L) | 940 x 1300 x 1590 mm |
| Weight | 200 kg |
The AG350GF delivers efficient mixing performance, capable of handling up to 280 litres of material per batch. Its PTO-driven operation ensures consistent power, while the robust design withstands the demands of agricultural and construction environments. The user-friendly features, such as the foot-operated tipping lock and straightforward tractor attachment, enhance operational efficiency and safety.
Q: Is the Altrad Belle AG350GF compatible with all tractors?
A: The AG350GF is designed to fit most tractors equipped with a standard three-point hitch and PTO drive, ensuring broad compatibility.
Q: What is the maximum mixing capacity of the AG350GF?
A: The mixer has a drum volume of 340 litres and a maximum mixing capacity of 280 litres per batch.
Q: Does the mixer come with a PTO shaft?
A: No, the PTO shaft is not included as standard. It must be ordered separately using part number LZ030.
Q: What materials is the mixer suitable for?
A: The AG350GF is suitable for mixing larger batches of concrete and mortar, making it versatile for various agricultural and construction applications.
Q: How is the drum emptied after mixing?
A: The mixer features a foot-operated tipping lock, allowing for safe and controlled discharge of the mixed materials.
