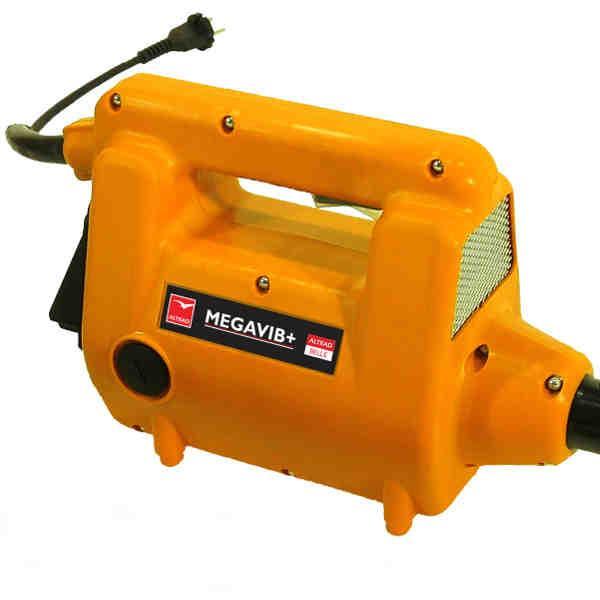

The Belle Megavib+ Universal Electric Drive Unit 230V is a high-frequency, lightweight, and portable concrete vibrating poker system. Designed to ensure optimal concrete compaction, it effectively removes air pockets, resulting in stronger, more durable concrete structures. Ideal for professionals in construction, it offers high performance in small to medium-sized concrete pours.
Built for rugged job site conditions, the Megavib+ features a durable, high-impact motor housing with double insulation for added safety. Weighing only 4.8 kg, it is easy to transport and use for extended periods. The ergonomic shoulder strap enhances manoeuvrability, reducing operator fatigue and improving overall efficiency.
| Specification | Details |
|---|---|
| Part Number | 244/00300 |
| Power Source | Electric (Corded) |
| Voltage | 230V |
| Motor Power | 2.3 kW |
| Motor Speed (Unloaded) | 18,000 rpm |
| Motor Speed (Loaded) | 12,000 rpm |
| Current Draw | 10 Amps |
| Weight | 4.8 kg |
The Belle Megavib+ Drive Unit 230V provides consistent and reliable vibration for effective concrete compaction. With high-frequency performance, it ensures minimal air entrapment, leading to stronger and longer-lasting concrete structures. Users benefit from its ease of use, ergonomic design, and adaptability to different job site conditions.
Q: What poker head sizes are compatible with the Megavib+ Drive Unit?
A: The unit is compatible with 25mm, 36mm, 50mm, and 57mm poker heads, making it adaptable for different concrete applications.
Q: Does the drive unit come with a flexible shaft?
A: No, the flexible shaft is sold separately. Users can select from different shaft lengths to suit their specific job requirements.
Q: Is this unit suitable for large-scale concrete projects?
A: While ideal for small to medium-sized concrete pours, for larger projects, a more powerful system may be recommended for maximum efficiency.
