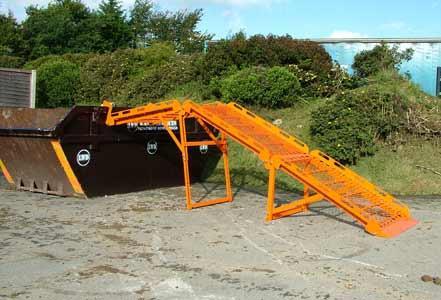

The Altrad Belle BMD 300 Minidumper Skip Loading Ramps are essential accessories designed to facilitate the efficient loading of materials into skips. Engineered for compatibility with the BMD 300 Minidumper, these ramps enhance operational efficiency on construction sites, landscaping projects, and other material-handling tasks.
Constructed from high-quality materials, these ramps are built to withstand rigorous use in demanding environments. Their robust design ensures durability, while the foldable feature allows for easy transportation and storage. Adjustable legs accommodate uneven ground, providing stability during loading operations.
| Specification | Details |
|---|---|
| Part Number | OPD/03/DIO |
| Total Length | 3,966 mm |
| Section 1 Length | 1,305 mm |
| Section 2 Length | 1,500 mm |
| Section 3 Length | 1,144 mm |
| Maximum Height (E) | 1,250 mm |
| Width (F) | 953 mm |
| Width (G) | 786 mm |
| Weight per Section | 30 kg |
| Maximum Payload | 600 kg |
Users report that the skip loading ramps significantly improve the efficiency of loading materials into skips when using the BMD 300 Minidumper. The foldable design and adjustable legs provide versatility and ease of use, while the sturdy construction ensures safety and reliability during operation.
Q: Are the ramps compatible with other minidumper models?
A: The ramps are specifically designed for the Altrad Belle BMD 300 Minidumper. Compatibility with other models would depend on their dimensions and specifications.
Q: Can one person assemble and set up the ramps?
A: Yes, the ramps are designed for easy assembly and can be set up by a single person.
Q: How do the adjustable legs benefit the operation?
A: The adjustable legs allow the ramps to be stabilised on uneven ground, ensuring safe and efficient loading operations.
