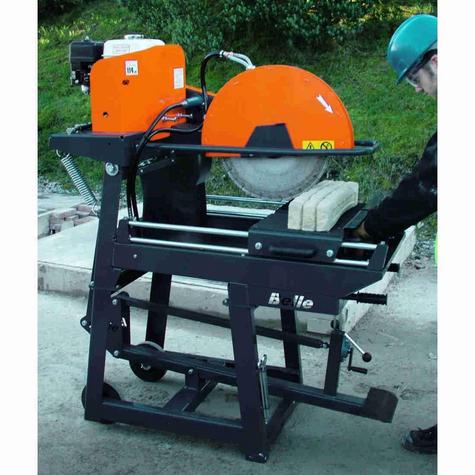

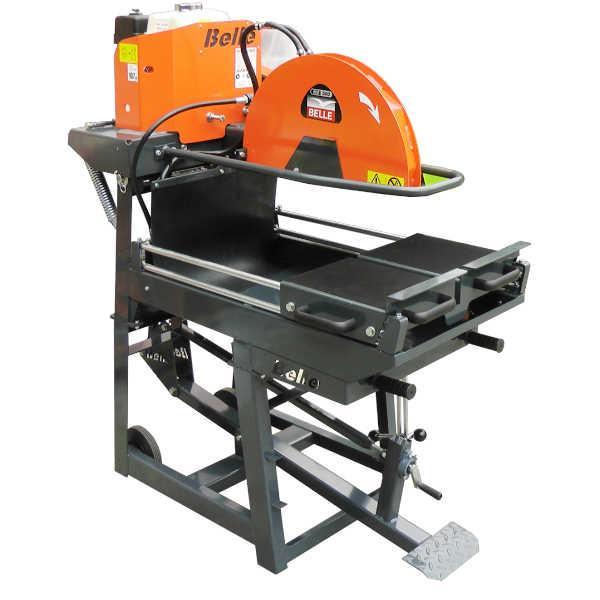

The Belle MS500 Ambassador Masonry Saw is a robust, heavy-duty masonry saw designed for professional applications. It is ideal for cutting a wide range of materials, including bricks, slabs, and large tiles, making it suitable for construction sites and masonry workshops.
Constructed with durability in mind, the MS500 features a heavy-duty frame and a sliding table equipped with seize-resistant rollers to ensure straight and accurate cuts. The machine is fitted with wheels and fold-away handles, enhancing portability and ease of transportation.
| Specification | Details |
|---|---|
| Model Number | MS507 |
| Motor Power | 3.4 HP / 2.5 kW |
| Voltage | 110V |
| Blade Size | 500 mm x 25.4 mm |
| Blade Speed | 2256 rpm |
| Maximum Cutting Depth | 195 mm |
| Maximum Cutting Length | 560 mm |
| Water Tank Capacity | 57.3 litres |
| Dimensions (W x H x L) | 715 mm x 1590 mm x 1410 mm |
| Weight | 202.5 kg |
| Sound Power Level | 107 dB(A) |
The MS500 delivers high-performance cutting with its powerful motor and large blade capacity, enabling efficient handling of various masonry materials. Its ergonomic design, combined with features like the adjustable cutting head and reliable dust management system, enhances user comfort and operational efficiency.
Q: What is the recommended transformer size for the 110V model?
A: A minimum transformer size of 10 kVA is recommended for use with the 110V MS500 model.
Q: Can the MS500 be easily transported to different job sites?
A: Yes, the MS500 is designed with wheels and fold-away handles for easy transportation and manoeuvrability. Additionally, the machine can be split into two parts for convenient storage and transport.
Q: What is the maximum blade size the MS500 can accommodate?
A: The MS500 is designed to accommodate a blade size of 500 mm x 25.4 mm.
Q: What materials can the MS500 cut?
A: The MS500 is suitable for cutting a wide range of materials, including bricks, slabs, and large tiles, making it ideal for various masonry applications.
