Product Information

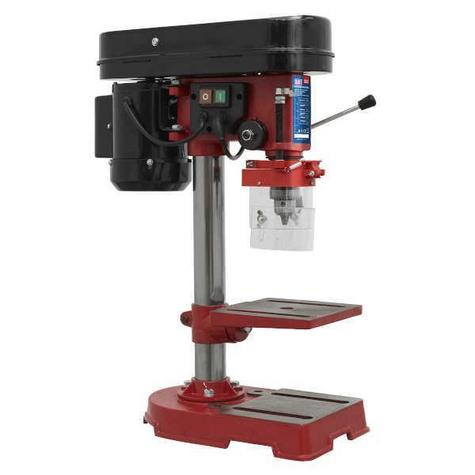

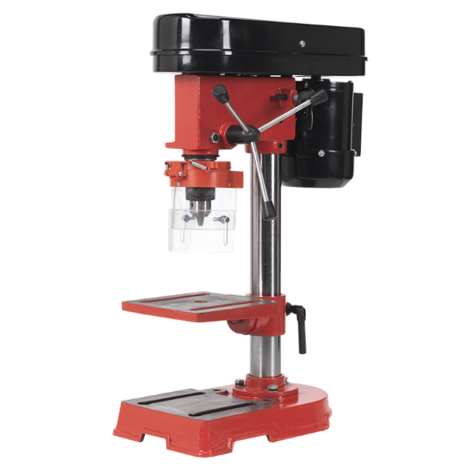

Pillar Drill 5-Speed Hobby Model 583mm Height 330W/230V

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
• Models GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all models GDM120B - GDM200F inclusive.

Specifications

• Make: Sealey
• Model No.: SDM30
• Drilling Capacity (Chuck Size): 13mm
• Spindle Nose Taper: JT2-1/2
• Swing: 256mm
• Spindle Centre to Column: 105mm
• Spindle Travel: 50mm
• Number of Speeds: 5
• Speed Range: 650-2800rpm
• Maximum Distance Spindle to Table: 208mm
• Maximum Distance Spindle to Base: 293mm
• Working Table Surface Size: 162 x 158mm
• Working Base Surface Size: 140 x 180mm
• Overall Base Size: 198 x 310mm
• Column Diameter: 46mm
• Collar Diameter: 42mm
• Overall Height: 583mm
• Motor Power: 170W - 230V
• Input Power: 330W - 230V
• Weight: 18kg
• For Warranty see: Sealey Warranties
• Standard delivery:2-3 days
