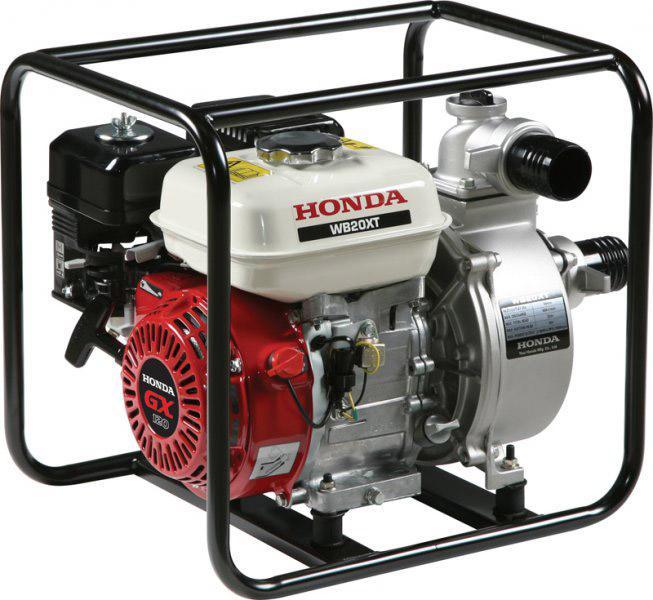

The Honda WB20 is a robust 2-inch general-purpose centrifugal water pump, ideal for industrial and agricultural applications such as irrigation, flood control, and pool draining. It boasts a maximum flow rate of 164 gallons per minute (GPM), ensuring efficient water transfer for various tasks.
Constructed with a durable aluminium body, the WB20 features a cast iron volute and impeller, enhancing its longevity and resistance to wear. The inclusion of heavy-duty full-frame protection safeguards the pump during operation and transportation, while anti-vibration mounts minimise movement and wear on components.
| Specification | Details |
|---|---|
| Model Number | WB20XT4A |
| Engine | Honda GX120 |
| Displacement | 118cc |
| Fuel Capacity | 0.53 gallons |
| Run Time at Max Discharge | 1.7 hours |
| Suction Port Diameter | 2 inches NPT |
| Discharge Port Diameter | 2 inches NPT |
| Total Head Lift | 105 feet |
| Suction Head Lift | 25 feet |
| Maximum Pressure | 45 psi |
| Dimensions (L x W x H) | 19.3" x 14.4" x 16.5" |
| Dry Weight | 44 lbs |
The Honda WB20 delivers reliable performance with a discharge capacity of up to 164 GPM, making it suitable for various dewatering tasks. Its self-priming feature and efficient impeller design ensure quick operation, while the robust construction and protective frame enhance durability in demanding environments.
Q: What type of engine powers the Honda WB20 pump?
A: The WB20 is powered by a Honda GX120 118cc OHV commercial-grade engine, known for its reliability and easy starting.
Q: What is the maximum flow rate of the WB20 pump?
A: The pump has a maximum flow rate of 164 gallons per minute (GPM), suitable for efficient water transfer tasks.
Q: What materials are used in the construction of the pump's volute and impeller?
A: Both the volute and impeller are made of cast iron, providing enhanced durability and resistance to wear.
