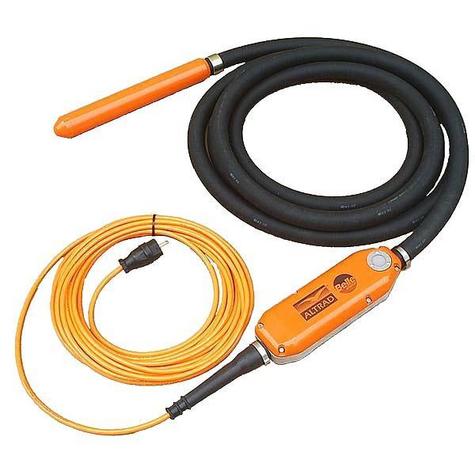

The Altrad-Belle Vibratech+ 58mm 110V High-Frequency Poker with Rubber Cap is a heavy-duty, high-frequency electronic poker designed for demanding construction environments. Equipped with a 58mm diameter head and an abrasion-resistant hose, it ensures efficient consolidation of deeply poured concrete, making it ideal for large-scale projects.
Constructed with durability in mind, the Vibratech+ features a die-cast moulded aluminium housing with chamfered edges. Its robust design ensures reliable operation under tough site conditions, while the long-life motor requires minimal maintenance. The inclusion of an LED operation and fault display enhances user convenience and operational safety. The rubber cap on the poker head provides additional protection and durability during use.
| Specification | Details |
|---|---|
| Model Number | Vibratech+ 58mm 110V with Rubber Cap |
| Power Source | Corded Electric |
| Voltage / Frequency | 110V / 50-60Hz |
| Poker Head Diameter | 58mm (2.3 inches) |
| Poker Head Length | 410mm |
| Hose Length | 7m or 10m options available |
| Cable Length to Switch | 15m |
| Vibrations per Minute | Up to 12,000 |
| Centrifugal Force | 5,075 N |
| Input Current | 3.0 A |
| Vibration Level | 1.99 m/secē |
| Weight | 19 kg (7m hose) / 24 kg (10m hose) |
The Vibratech+ delivers high-frequency vibrations at up to 12,000 vibrations per minute, effectively removing air pockets and ensuring optimal concrete compaction. Its extended hose and cable lengths offer users greater mobility across large work areas, enhancing productivity and minimizing the need for frequent repositioning.
Q: Does the Vibratech+ 58mm 110V require an external frequency converter?
A: No, this model features an integrated in-line converter, eliminating the need for an additional external power source.
Q: What hose lengths are available for this model?
A: The Vibratech+ 58mm 110V is available with either a 7-meter or 10-meter abrasion-resistant hose, designed for deeply poured concrete.
Q: How does the rubber cap benefit the poker head?
A: The rubber cap provides additional protection to the poker head, enhancing durability and extending the tool's lifespan.
Q: What is the recommended power supply capacity for optimal operation?
A: A minimum of 2.5kVA continuous or 5kVA intermittent power supply is recommended for optimal performance.
