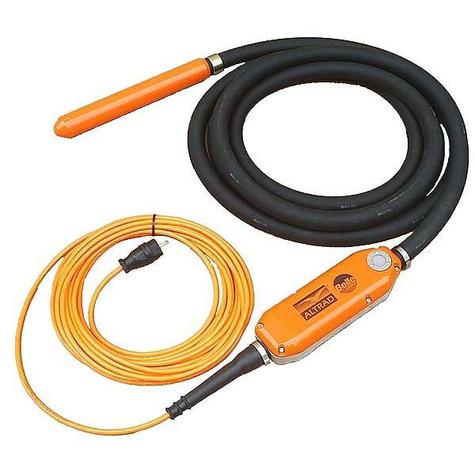

The Altrad-Belle BVP14 Vibratech+ is a heavy-duty, high-frequency electronic poker designed to meet the rigorous demands of modern construction sites. Featuring a 52mm diameter head equipped with a rubber cap and a 7-meter abrasion-resistant hose, this tool ensures efficient consolidation of deeply poured concrete, making it ideal for large-scale projects.
Built for durability, the BVP14 features a die-cast moulded aluminium housing with chamfered edges, ensuring resilience against harsh construction site conditions. The integrated LED operation and fault display enhance user convenience by offering real-time status updates, ensuring both safety and efficiency during operation.
| Specification | Details |
|---|---|
| Model Number | BVP14 |
| Power Source | Corded Electric |
| Voltage / Frequency | 110V / 50-60Hz |
| Poker Head Diameter | 52mm (2.0 inches) |
| Poker Head Length | 382mm |
| Hose Length | 7m |
| Cable Length to Switch | 15m |
| Vibrations per Minute | Up to 12,000 |
| Centrifugal Force | 3,420 N |
| Input Current | 2.6 A |
| Vibration Level | 1.77 m/secē |
| Weight | 17 kg |
The BVP14 delivers high-frequency vibrations at up to 12,000 vibrations per minute, effectively eliminating air pockets and ensuring optimal concrete compaction. Its extended hose and cable lengths offer users greater mobility across large work areas, enhancing productivity and minimising the need for frequent repositioning.
Q: Does the BVP14 require an external frequency converter?
A: No, the BVP14 features an integrated in-line converter, eliminating the need for an additional external power source.
Q: What is the recommended power supply capacity for optimal operation?
A: A minimum of 2.5kVA continuous or 5kVA intermittent power supply is recommended for optimal performance.
Q: How does the rubber end cap benefit the operation?
A: The rubber end cap protects the poker head, enhancing durability and prolonging its lifespan.
Q: Is the hose length sufficient for deep concrete pours?
A: Yes, the 7-meter abrasion-resistant hose is designed for deep concrete pours, ensuring effective vibration throughout the entire depth.
Q: How does the LED operation/fault display enhance usability?
A: The LED display provides real-time feedback on the operational status of the poker, alerting users to any faults and ensuring timely maintenance or adjustments.
