Diamond Saw Blades Husqvarna EL70CNB 230mm x 2 Abrasive

Product Information

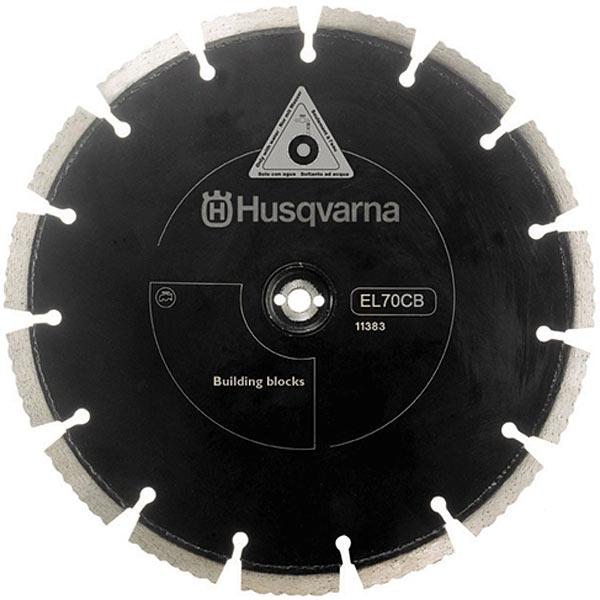

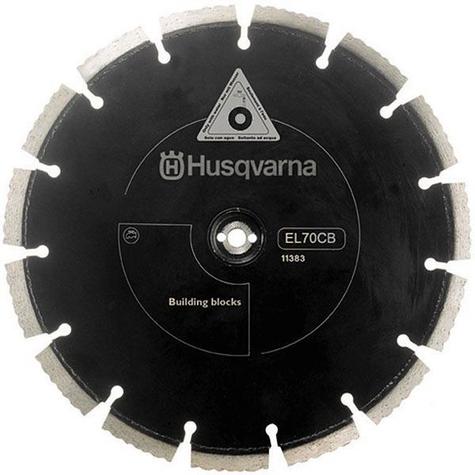

2 x 230mm Abrasive Material Diamond Blades

• Cut in steps through walls up to 40cm thick, with a very low diamond tool investment.
• Flat-shaped segments on concrete blade EL70 to promote best wear resistance when cutting in abrasive materials.
• The self-sharpen segments are designed to give a free-cutting tool regardless of direction of blade rotation.
• Specially-developed 230mm blades with pulley incorporated into the steel body.
• Highest quality blade components due to tough application and extreme cutting depth.
• This unique design provides high cutting speed and power.
• Twin blades, a blade set consists of two blades.
• Optimal performance on building brick and abrasive building block.
• Occasional use on soft concrete.

Specifications

• Make: Husqvarna
• Part No.: 587808301
• Type: Wet
• Power Range: 1.8-3.7kW / 2.41-4.96hp(I)
• Blade Diameters: 230mm/230mm / 9''/9''
• Geometry: Segmented
• Segment Shape: Elite
• Segment No.: 15
• Segment Configuration: Narrow Notched (N)
• Assembly: Laser welded
• Segment Height: 10.5mm / 0.41''
• Segment Base: 2mm / 0.08''
• Segment Length: 40mm / 1.57''
• Segment Width: 2.4mm / 0.09''
• Diamond Depth: 8.5mm / 0.33''
• Packed Dimensions (W x D x H): 260mm x 260mm x 30mm
• Packed Weight: 1.1Kg
• Suitability: K760 Cut-n-Break, K3000 Cut-n-Break
