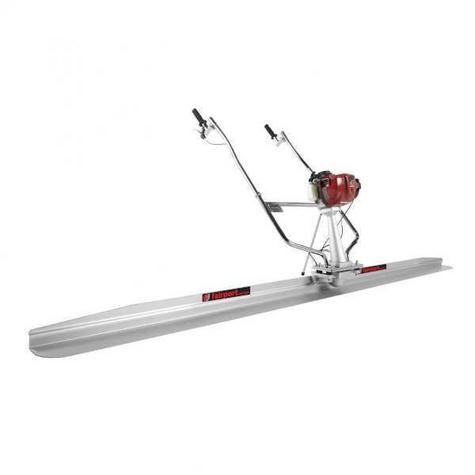

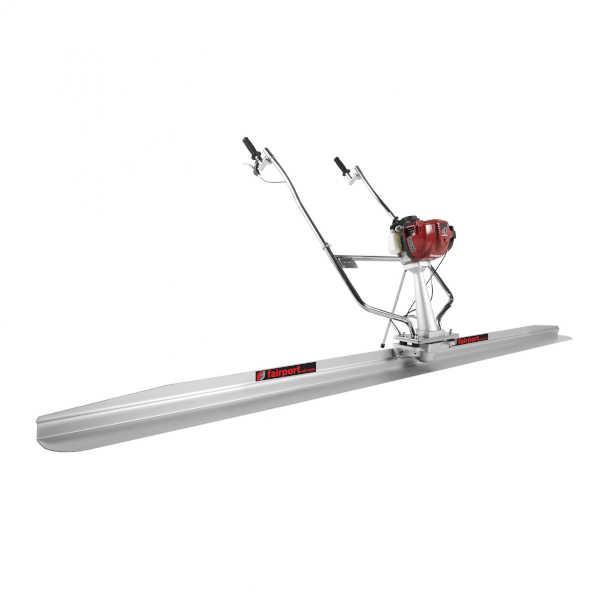

The Fairport FS Screeder Power Unit, equipped with the reliable Honda GX35 engine, is designed for efficient and precise concrete surface screeding. Ideal for construction professionals, it facilitates quick and smooth striking off and leveling of concrete surfaces, enhancing productivity on job sites.
Constructed with durability in mind, the FS Screeder features a robust frame that ensures longevity under demanding conditions. Its ergonomic design includes fully adjustable handles, allowing operators to customize height and angle settings for optimal comfort during extended use. The lightweight power unit and frame make it easy to maneuver and transport around the site. Additionally, the beam (blade) and power unit can be easily separated for transport and storage, secured by just two nuts and bolts. The beam section is shaped for productive working, capable of rolling a surcharge or free floating, with shaped beam ends minimizing any 'tram line' effect.
| Specification | Details |
|---|---|
| Engine Model | Honda GX35 |
| Engine Type | 4-stroke single-cylinder OHC petrol engine |
| Displacement | 35.8 cm³ |
| Net Power | 1.0 kW (1.3 HP) at 7,000 rpm |
| Fuel Tank Capacity | 0.63 litres |
| Fuel Consumption at Net Power | 0.71 L/h at 7,000 rpm |
| Dry Weight (Engine Only) | 3.33 kg |
| Overall Weight (Drive Unit) | 12.7 kg |
| Beam Lengths Available | 1.2 m, 1.8 m, 2.4 m, 3.0 m, 3.6 m, 4.2 m, 4.8 m |
The FS Screeder delivers high-quality concrete leveling with minimal effort. Its efficient vibration system ensures consistent consolidation and leveling, resulting in a smooth finish. The ergonomic design and adjustable handles reduce operator fatigue, making it suitable for extended use. The lightweight construction and easy disassembly facilitate straightforward transportation and storage, enhancing overall user convenience.
Q: Can the FS Screeder be used without formwork?
A: Yes, the FS Screeder can operate without accurate formwork or screed rails. It is capable of "free screeding," floating on the concrete surface while vibrating to consolidate and level the concrete.
Q: Are the beams interchangeable with other screed units?
A: Yes, the beams are interchangeable with other makes of screed units, offering flexibility in beam selection for various project requirements.
Q: What beam lengths are available for the FS Screeder?
A: The FS Screeder offers a range of beam lengths to suit different job requirements, including 1.2 m, 1.8 m, 2.4 m, 3.0 m, 3.6 m, 4.2 m, and 4.8 m.
