Product Information

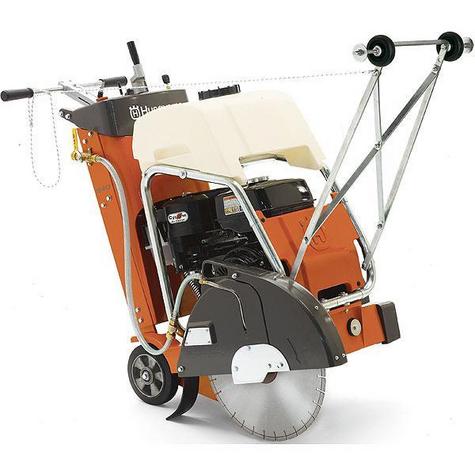

The FS413 series floor saw is a true multi-purpose concrete saw. It is compact and developed with a clear focus on ergonomics, making it ideal for small to mid-sized jobs.

Features

• Poly-V belts for optimum power transmission.
• Husqvarna’s floor saws are robust, well designed and easy to use thanks to features as protective cage, lift bail and cutting depth indicator.
• Patent-pending raise/lower assist system, using springs.
• A compact push saw with a clear focus on ergonomics.
• Patent-pending engine and bladeshaft mounting system reduce overall vibration and produce better cutting performance.
• Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
• Patent-pending spring-assist screw feed adjustment reduces the force required to adjust the blade in and out of the cut.
• Compact and easy to transport.

Specifications

• Make: Husqvarna
• Part No.: 965150102
• Engine: Honda
• Power: 13hp
• Bore Size: 25.4mm / 1''
• Blade Diameter: 500mm / 20''
• Cutting Depth: 190mm / 7.48''
• Hand / Arm Vibration (Aeq): 3m/s
• Sound Pressure Level: 96dB(A)
• Sound Power Level LWA: 106dB(A)
• Weight: 163kg / 359.35lbs
• Product Size (L x W x H): 1550 x 655 x 1200mm / 61.02 x 25.79 x 47.24''

Unfortunately, there is NOT a Blade supplied with this Floor Saw
