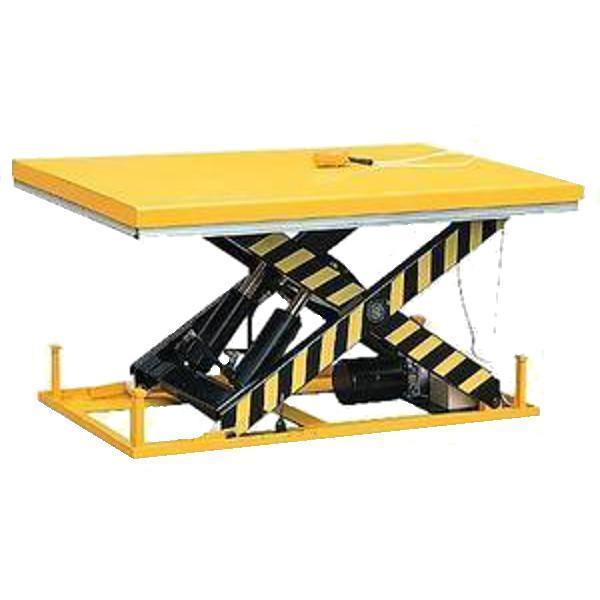

Lift Table Warrior WRSLT30 3000Kg Static

Lift Table Warrior WRSLT30 3000Kg Static

Warrior lift tables can be used either at ground level or in a pit. They lift up to 1780mm and also help alleviate bending and twisting often found in industrial environments.

• Tables are controlled by a 24volt inbuilt hydraulic power pack via an up and down pendant
• Tables are powered by 3 phase, 380volt AC motors
• Pressure relief valve fitted to protect the hydraulic system
• Oilite bushing on axle pivots
• Emergency check valve to ensure slow controlled descent in the event of a hydraulic failure
• Removable lifting eyes
• Tables have fully interlocked descent arrestors in case of obstruction
• Manufactured to EN1570 and EN60204-1
• 12 months on site parts and labour warranty

Specifications

• 3000kg capacity
• Maximum height 1020mm
• Minimum height 220mm
• Platform 1300mm x 800mm
• Lifting time 26 seconds
• Lowering time 22 secongs
• Power pack 1500 watt
• Net Weight 320kg
• Please call us on 01202 233221 for delivery
