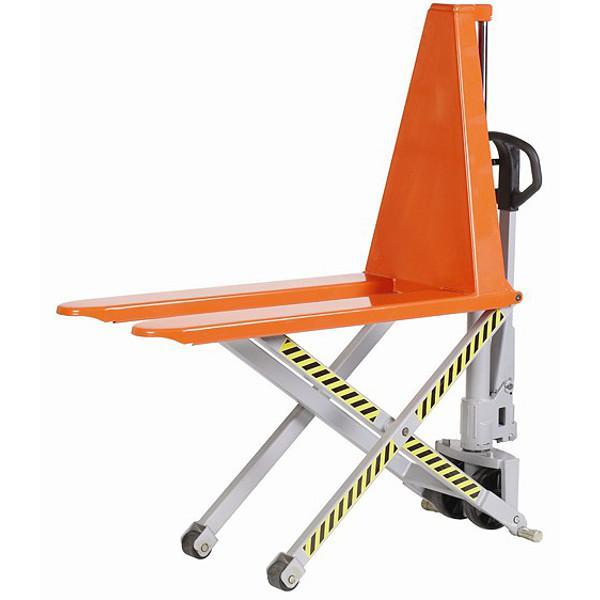

The Warrior WR10 High Lift Pallet Truck is designed to improve workplace ergonomics by allowing pallets to be lifted to a convenient working height. Ideal for light production, packing lines, or assembly areas, this unit combines the functionality of a standard pallet truck with the added benefit of lift table-style height adjustment. With a 1000kg capacity and a maximum lift height of 800mm, it helps reduce bending, lifting strain, and operator fatigue during repetitive material handling tasks.
Manufactured with a strong steel chassis and powder-coated finish, the WR10 is built for industrial environments. Its forks are reinforced to ensure rigidity at full lift height, while an integrated stabiliser leg system automatically engages above 400mm to ensure operational safety. Polyurethane steer wheels and fork rollers provide smooth, non-marking movement across warehouse floors. The handle design incorporates three-position controls for lifting, transporting, and lowering pallets with precision and ease.
Specification | Details |
---|---|
Model Number | WR10 |
Power Source | Manual Hydraulic |
Load Capacity | 1000kg |
Fork Length | 1170mm |
Overall Fork Width | 540mm |
Lowered Fork Height | 85mm |
Raised Fork Height | 800mm |
Individual Fork Width | 160mm |
Steering Wheels | 180mm x 50mm (Polyurethane) |
Fork Rollers | 75mm x 50mm (Polyurethane) |
Stabiliser Legs | Automatic engagement above 400mm |
Finish | Powder-coated steel frame |
Compliance | BS EN 1757-2:2001 |
The WR10 High Lift Pallet Truck provides an excellent solution for workplaces that require improved ergonomics and flexibility. Its smooth hydraulic lifting action, stable fork elevation, and automatic stabilisers ensure safe use during production or handling. Quiet polyurethane wheels enhance the overall user experience in clean and noise-sensitive environments, while the quick-lift function speeds up repetitive handling tasks when managing lighter loads.
Q: Can this be used with all types of pallets?
A: No. This model is designed for use with open-bottomed pallets (e.g., Euro pallets). It is not suitable for perimeter-based or fully enclosed pallets.
Q: What happens when the forks go above 400mm?
A: Stabiliser legs automatically deploy to prevent movement and tipping, locking the truck in place until the forks are lowered again.
Q: How many pump strokes are required to reach full height?
A: Approximately 25-30 strokes for a full lift depending on load weight. The quick-lift mechanism reduces this significantly for lighter loads (under 250kg).
Q: Is this unit suitable for continuous lifting use?
A: It is designed for intermittent use typical in packing or production lines. For intensive lifting cycles, consider electric high-lift options.
Q: Is the WR10 CE marked?
A: Yes, the WR10 conforms to BS EN 1757-2:2001 and carries the CE mark for compliance and safety assurance.
