Plate Compactor Altrad-Belle PCLX 12/40E ELECTRIC 230V 380mm
£932.60 + VAT (includes free mainland UK delivery)

Plate Compactor Altrad-Belle PCLX 12/40E ELECTRIC 230V 380mm

Product code: BEL1055 £932.60  + VAT
(includes free mainland UK delivery)
Ask a Question
Enter your details and we will get back to you

Product Information

belle logo

Watch Video

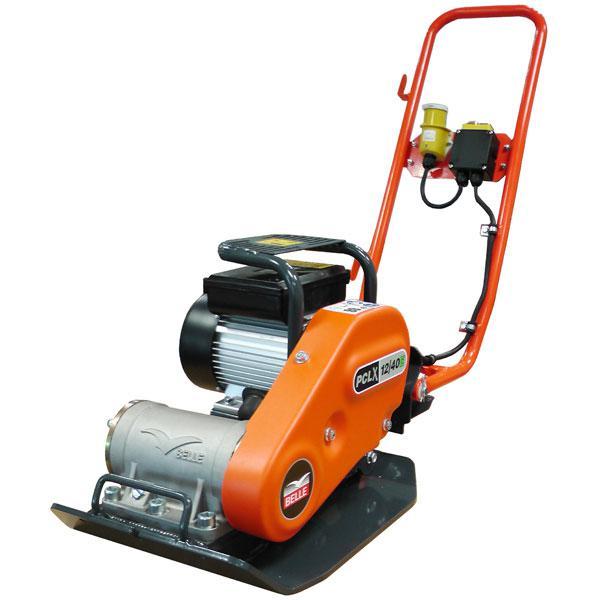

PCLX 12/40E Electric Plate Compactor 230v

A lightweight professional compaction plate with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.

  • High performance 12kN vibration unit for excellent travel speed.
  • High Compaction Force reduces operating times.
  • Environmentally friendly, 1.5kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
  • Low HAV design allows longer, safe usage times.
  • Efficient Electric Motor is ideal for night time and urban usage.
  • Centrifugal Clutch for soft start & reduced current surge.
  • Professional 16amp power inlets for effective cable management.
  • Sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Front & rear manual handling points for easy 2-man lift.
  • Removable, ultra low folding operator's handle for ease of transportation and storage.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Engineered to be robust and durable for rental and heavy contractor use.
  • No fuel or engine maintenance and higher return on investment.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection guard.
  • Block Paving Pad option available.
  • *110V Illustrated

Operator Manual



Specifications:-

  • Man Code : LCE4002
  • Model : PCLX 12/40E 230v 50Hz
  • Motor Power (Hp - kW): 2.0 - 1.5
  • Minimimum Transformer Size (kVA): 3.3
  • Plate Size (mm): 380 x 364
  • Static Pressure (kg/m2): 388
  • Max.Gradient (°): 20
  • Centrifugal Force (kN): 12
  • Travel Speed (m/min): 24
  • Vibration Level (m/sec2): 3.97
  • Weight (kg): 50
