Plate Compactor Altrad-Belle PCLX 16/45E ELECTRIC 110v 450mm

Plate Compactor Altrad-Belle PCLX 16/45E ELECTRIC 110v 450mm Product code: BEL1056 £1736.22  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

belle logo

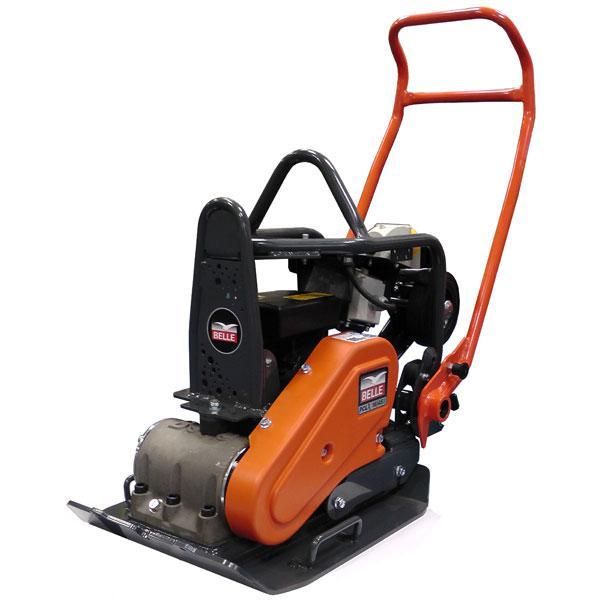

PCLX 16/45E Electric Plate Compactor

A heavyweight professional plate with excellent performance and travel speed from the 16kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.

  • High performance 16kN vibration unit for excellent travel speed.
  • High Compaction Force reduces usage times.
  • Engineered to be robust and durable for rental and heavy contractor use.
  • Environmentally friendly, 2.2kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
  • Low HAV design for longer, safe usage times.
  • Efficient Electric Motor is ideal for night time and urban usage.
  • Centrifugal Clutch for soft start & reduced current surge.
  • Professional 32amp power inlet for effective cable management.
  • Large sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Integrated Quick Engage Wheel Kit with Large diameter Wheels to aid transportation on rough terrain.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Pull Bar for increased manoeuvrability.
  • No fuel or engine maintenance and higher return on investment.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection frame.
  • Block Paving Pad option available.

Operator Manual


  • Man Code : MCE4501
  • Model: PCLX 16/45E 110v 50Hz
  • Motor Power: (Hp - kW):3.0 - 2.2
  • Minimum Transformer Size (kVA):5.0
  • Plate Contact Area (mm):450 x 420
  • Static Pressure (kg/m2):517
  • Max. Gradient ():20
  • Centrifugal Force (kN):16
  • Travel Speed (m/min):27
  • Vibration Level (m/sec2):3.04
  • Weight (kg):97
