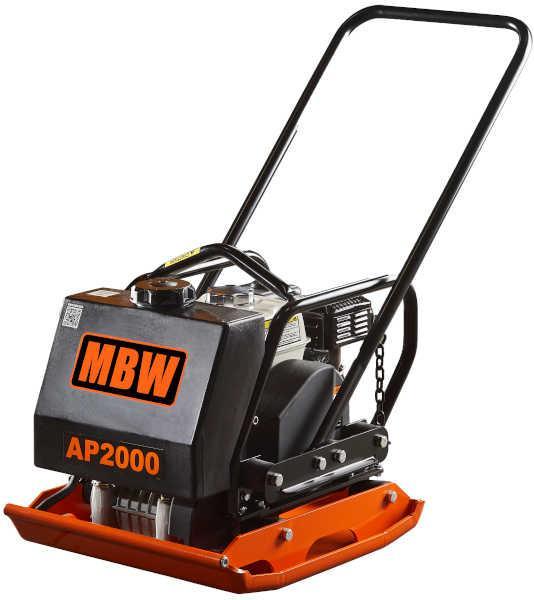

Plate Compactor MBW AP2000 Honda GX160 Asphalt 510mm

Plate Compactor MBW AP2000 Honda GX160 Asphalt 510mm Product code: MBW1008 £1605.41  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Watch Video

AP2000 series is the only vibratory plate compactor specifically designed for asphalt applications. Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt.

Further, the mechanical construction of the AP2000 is specific to this very demanding application. Stress relieved steel plate housings are crack resistant and provide long wear. Aluminium exciter housing dissipates heat rapidly and custom lubricants preserve bearing and seal integrity. The self cleaning plate prevents dirt build-up.


  • Model: AP2000H
  • Engine: Honda GX160
  • Plate Size: 510mm wide x 560mm long
  • Centrifugal Force: 2475 LBF (11kN)
  • Exciter Speed: 4400 VPM
  • Compaction Depth: Up to 12 inch (310mm)
  • Travel Speed: 90FT/MIN (27.14M/M)
  • Compaction Area: 8550 SQFT/H (794SQM/H)
  • Weight: 75kg
  • Optional transport wheel kit available
  • Optional paving pad available
  • 12 Months Manufacturer’s Warranty
  • Standard delivery 1-2 working days
