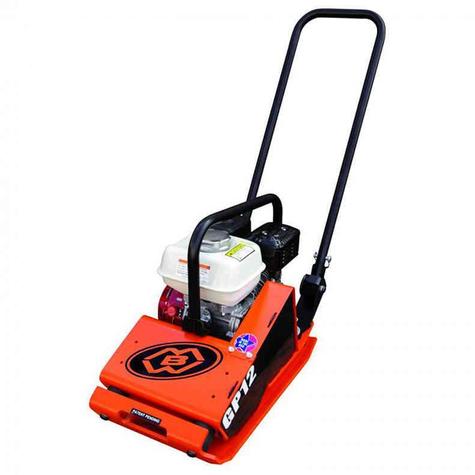

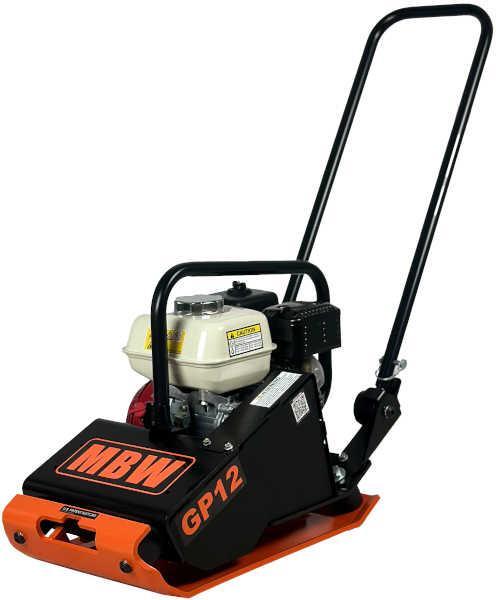

Plate Compactor MBW GP12 330mm
Product Information
This series of vibratory plates, the GP12, GP15 & GP18, are portable, and offer outstanding compaction performance. A patent-pending suspension system that places shock mounts in a predominantly shear mode at the high amplitude front end of the plate and a predominantly compressive mode at the low amplitude trailing end of the plate. This system reduces hand arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter.
With amplitudes up to 1.72 mm, centrifugal force up to 12.3kN and travel speeds to 25metres per minute these plates are ideal in confined areas of granular soils including sands, bank run, gravels and capable of achieving lift depths of up to 310mm).
Specifications:
- Engine: Honda GX120
- Plate Size: 330mm wide x 570mm long
- Self cleaning open base plate design
- Standard lift Cage
- Amplitude: 1.47mm
- Centrifugal Force: 8.5kN
- Exciter: One piece
- Exciter Speed: 5240VPM
- Compaction Depth (Clean sand, optimum moisture): Up to 250mm
- Compaction Area: 453 sqm/h
- Travel Speed: 25m/min
- Weight: 59kg
- Optional transport wheel kit available

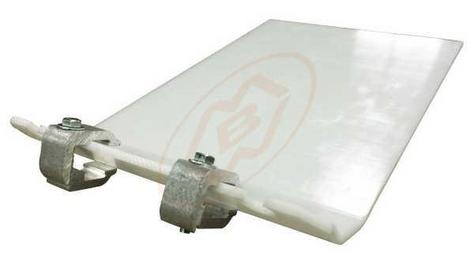

- Optional UHMW paving pad available
- 12 Months Manufacturer’s Warranty
- Standard delivery 1-2 working days
