Product Information

Approximate Lead Time - 8 weeks

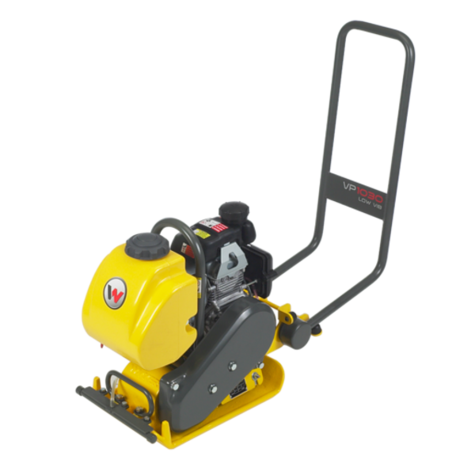

Single direction vibratory plate VP1030A with water kit for soil and asphalt

• Compact design allows for compaction in narrow spaces.
• High travel speeds and easy to manoeuvre.
• Large capacity water tank and the wide filler opening on the asphalt models leads to easy operator use and improved productivity.
• Ergonomically designed lifting handles make loading and unloading from transport vehicles easier for the operator.
• Specially designed exciter bearings reduce maintenance and improve productivity

Specifications

• Part No. 5000009514
• Operating height 629mm
• Size of base plate (L x W) 300mm x 496mm
• Operating weight 58kg
• Compacted area (soil) 468m2/h
• Forward speed (soil) 26m/min
• Vibration frequency 98Hz
• Max. centrifugal force 10kN
• Honda GX120 engine
• Fuel tank capacity 1.2 Litres
• Fuel consumption 0.33 l/h
• Power transmission from drive motor via automatic centrifugal belt drive direct to exciter.
