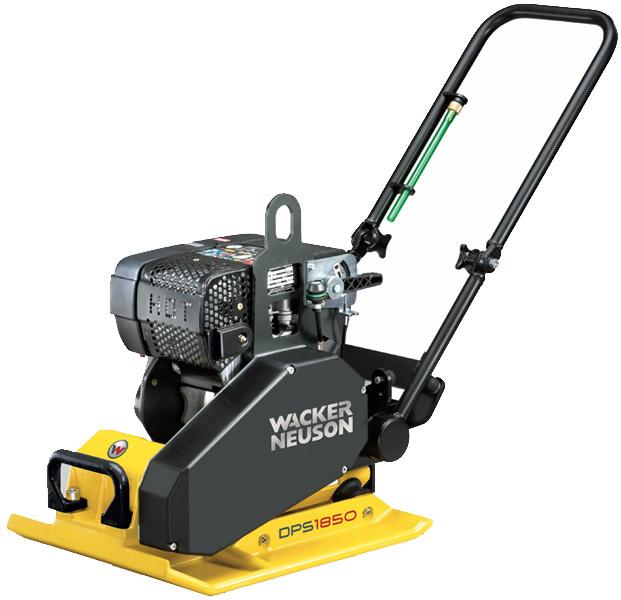

Plate Compactor Wacker Neuson DPS1850H Basic 500mm Diesel

£3242.82
Plate Compactor Wacker Neuson DPS1850H Basic 500mm Diesel Product code: WAC1005 £3242.82  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Wacker neuson logo

Please contact us for delivery time BEFORE ordering.

The DPS single-direction vibratory plate provides powerful compaction results on soil and asphalt and is ideally suited for use on on top and base layers. It was designed for tough, long-term application on the construction site. The diesel engine, equipped with large power reserves, the wear-resistant base plate from ductile graphite iron (GJS 700), we well as the maintenance-free and durable exciter bearing all contribute to the plate's long life and durability. The easy to reach throttle lever and vibration damped guide handle offer a high degree of operating comfort.


Features and Benefits

  • Highest degree of operator comfort thanks to the specially advantageous location of the throttle lever as well as the patented vibration neutralization of the height-adjustable guide handle.
  • Especially wear and fracture resistant base plate, even during continuous load applications, manufactured out of extremely resistant nodular cast iron (GJS-700).
  • Maintenance-free and load-resistant exciter bearings designed for long term applications at high temperatures (asphalt compaction).
  • Extremely long-life Hatz diesel engines with dry-type air filter for dust protection.

Specifications

  • Part No. 500610032
  • Operating weight110kg
  • Working width500mm
  • Machine height620mm
  • Working height of handle (adjustable)838 - 1.093 mm
  • Base plate thickness8mm0.31in
  • Max. centrifugal force18kN4.050lb
  • Vibration frequency90Hz
  • Forward speed22m/min
  • Gradeability30%
  • Compacted area (depending on soil)660m2/h
  • Drive engineair-cooled single cylinderHatz 1B20 diesel engine
  • Fuel consumption1,0l/h
  • Tank capacity3l
  • Max. allowable tilt of engine in continuous operation30
  • Power Trainfrom drive engine via centrifugal clutch and V-belt directly to the Exciter
HAV rating - 3.0 (8 hours maximum daily use)


Instruction Manual
Parts List
