The Probst FTZ-UNI-15 is a versatile mechanical grab designed for handling various prefabricated concrete elements, including blocks, wall elements, and steps. Ideal for construction and landscaping applications, it enhances efficiency and safety by allowing precise lifting and positioning of heavy materials.
Constructed with durability in mind, the FTZ-UNI-15 features a robust, galvanised steel frame that resists corrosion and wear. Its compact design allows for easy manoeuvring in confined spaces, while integrated handles ensure precise positioning during operation. The grab's automatic release mechanism ensures seamless transitions between gripping and releasing materials, streamlining workflow.
| Specification | Details |
|---|---|
| Gripping Range | 0-750 mm (0-29.5 inches) |
| Inside Height | 255 mm (10 inches) |
| Gripper Length | 420 mm (16.5 inches) |
| Working Load Limit (WLL) | 1,500 kg (3,300 lbs) |
| Dead Weight | 85 kg (187 lbs) |
| Surface Protection | Galvanised |

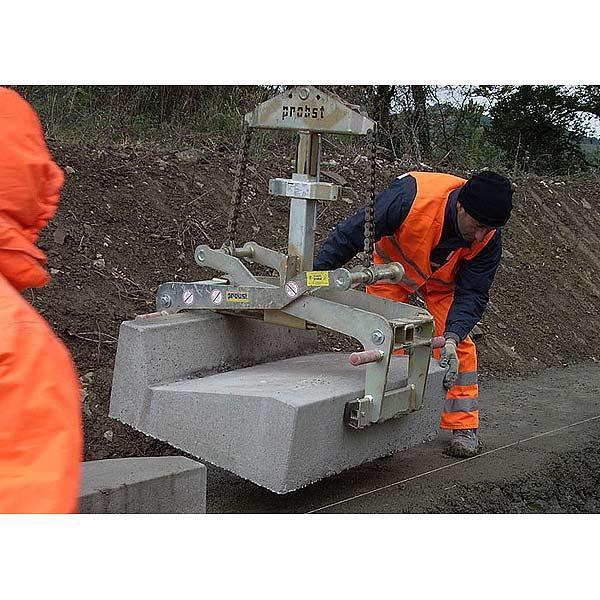

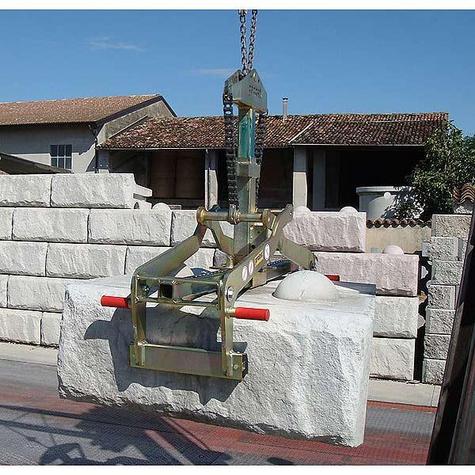

In real-world applications, the FTZ-UNI-15 demonstrates exceptional performance by securely gripping and transporting heavy concrete elements with ease. Its user-friendly design, including integrated handles and an automatic release mechanism, simplifies operation and reduces manual labour. The adjustable height feature allows operators to customise the gripping depth, accommodating various material sizes and shapes, thereby enhancing versatility on the job site.
Q: What types of materials can the FTZ-UNI-15 handle?
A: The FTZ-UNI-15 is designed to handle a variety of prefabricated concrete elements, including blocks, wall elements, steps, and similar materials.
Q: Is the gripping range adjustable?
A: Yes, the FTZ-UNI-15 features a universal gripping range of 0-750 mm (0-29.5 inches), allowing it to accommodate various sizes of precast concrete elements.
Q: Does the grab require manual release after placing materials?
A: No, the FTZ-UNI-15 is equipped with an automatic release mechanism that switches from "full" to "empty" without manual intervention, enhancing operational efficiency.
Q: Are the rubber grippers replaceable?
A: Yes, the FTZ-UNI-15 comes with exchangeable rubber grippers, allowing for easy replacement to maintain optimal gripping performance.
Q: Is there an option to adjust the gripping height?
A: Yes, optional adjustable height brackets are available, enabling control over the depth of gripping elements to suit different material dimensions.
