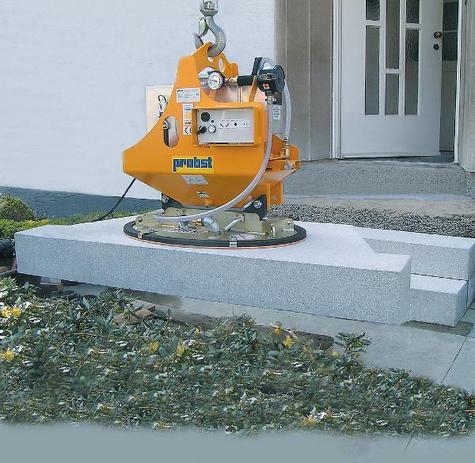

Vacuum Lifting Device SH-1000-MINI-B

For efficient and safe handling and laying of heavy loads up to 1,000 kg, such as granite slabs, dense concrete elements, marble slabs, kerb stones, steps, pipes etc.

• Engine: integral petrol engine
• Generation of suction through powerful vacuum pump 12 cbm/h, powered by an integral petrol engine
• Can be hooked in to any carrier or laying machine VM by means of load hook, chain, hoisting cable or similar
• All-purpose lifting device
• Huge ease of work
• Enormous benefit in economization
• Ingenious technology down to the smallest detail
• Different suction plates can be attached to the SH within seconds for varying kinds of applications, slab dimensions and weights.
• Manually operated valve for tripping suction and release sequences.
• Max. carrying capacity up to 1,000 kg at - 0,6 bar. depending upon the suction plate
• Centrical load balancing through two variable upper suspensions and adjustable attachment of suction plates
• Operating handles are arranged in ergonomic position for convenient direction and handling.
• Handles can easily be rearranged into a rack to put down the device on the ground properly.
• Integrated vacuum storage tank
• visual checking via pressure check valve with red-green-area
• battery powered acoustic warning device
• This machine does NOT come with a suction plate
• Man code: 52400018
• Please call 01202 233221 for delivery
