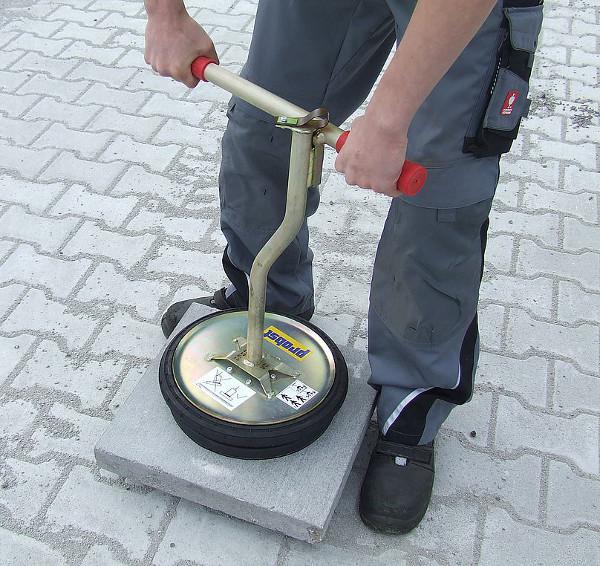

The Probst VACUUM-HANDY VH-1/25 is a manual vacuum lifting device designed for the efficient handling and installation of non-porous slabs and kerbstones. Ideal for construction and landscaping professionals, this tool facilitates the quick and precise placement of materials, enhancing productivity and reducing physical strain.
Constructed with a robust, galvanized steel frame, the VH-1/25 ensures durability and longevity in demanding environments. The device features a 280 mm diameter suction plate equipped with a replaceable seal ring, allowing for secure attachment to smooth, non-porous surfaces. Its ergonomic handle design promotes a comfortable working posture, minimizing operator fatigue during repetitive tasks.
Specification | Details |
---|---|
Model | VH-1/25 |
Part Number | 52600009 |
Suction Plate Diameter | 280 mm |
Working Load Limit (One-Man Operation) | 25 kg |
Working Load Limit (Two-Man Operation) | 50 kg |
Dead Weight | 5 kg |
Material | Galvanized Steel |
The VH-1/25 streamlines the process of laying non-porous slabs by providing a reliable and user-friendly lifting solution. Its simple vacuum generation mechanism allows for rapid attachment and release, facilitating accurate placement without gaps. The ergonomic design supports a natural working posture, reducing the risk of musculoskeletal strain during extended use. Additionally, the option to upgrade to a two-man operation enhances versatility, accommodating a broader range of material weights and sizes.
Q: Can the VH-1/25 be used on porous materials?
A: No, the VH-1/25 is specifically designed for non-porous materials. Using it on porous surfaces may result in insufficient suction and compromised safety.
Q: Is the two-man handle included with the VH-1/25?
A: The two-man handle (VH-2-HG) is an optional accessory and must be purchased separately to increase the lifting capacity to 50 kg.
Q: How do I replace the seal ring?
A: The seal ring is designed for quick and easy replacement without the need for adhesives. Simply remove the worn seal and fit the new one into place, ensuring it is securely seated before use.
