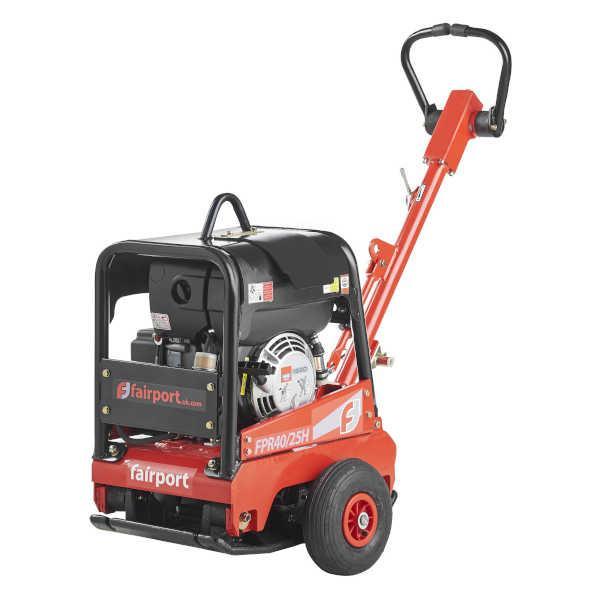

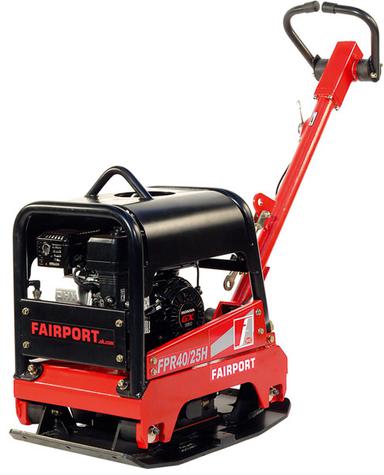

Reversible Plate Compactor Fairport FPR40/25H 400mm Honda

£2863.22
Reversible Plate Compactor Fairport FPR40/25H 400mm Honda Product code: FPT1119 £2863.22  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

FAIRPORT Made in Britain

Reversible Plate Compactor Fairport FPR40/25H 400mm Honda - Important, please contact us for delivery time.

Reversible plate compactors ideal and versatile for high compaction efficiency on sand, gravel MOT1 (hardcore) and soil.

Heavyweight compaction available from Reversible Plate Compactors enables fewer passes than standard single direction plate compactors (or normal "wacker" plates). So along with the wide base plates and deeper compaction, reversible plate compactors give higher productivity.

Increased compaction force with smooth transition between forward and reverse travel.

High levels of compaction vibration is delivered from a high efficiency vibrator system. Materials for sub-base and Asphalt are effectively "semi-fluidised" then hammered together. This extreme compaction power is easily and intuitively controlled using a precision hydraulic system. With excellent control, high outputs and comfortable operation the Fairport Reversible Plate Compactors are a No.1 hit with all operators.

  • Heavy duty roll-cage with lifting eye
  • Hydraulic forward and reverse mechanism
  • On-the-spot compaction
  • Reverse travel safety protection ensures machine travels forward if operator releases the handle
  • Impact resistant and open, self cleaning base-plate
  • Sealed belt cover design for protection to clutch and belt
  • Handle folds to 45° and 90° for transportation and storage
  • Honda petrol and Lombardini diesel options

Specifications :-

  • Engine: Honda GX160 ( Petrol )
  • Power HP/kW: 5.5 / 4.0
  • Centrifugal Force kN: 25
  • Frequency VPM : 5400
  • Plate Size W x L mm : 400 x 650
  • Travel Speed m/min : 22
  • Guaranteed Sound Power dB: 108
  • HAV level m/sec2: 4.2
  • Weight : 145Kg
  • Man Code : 94331

Manual and Parts List
