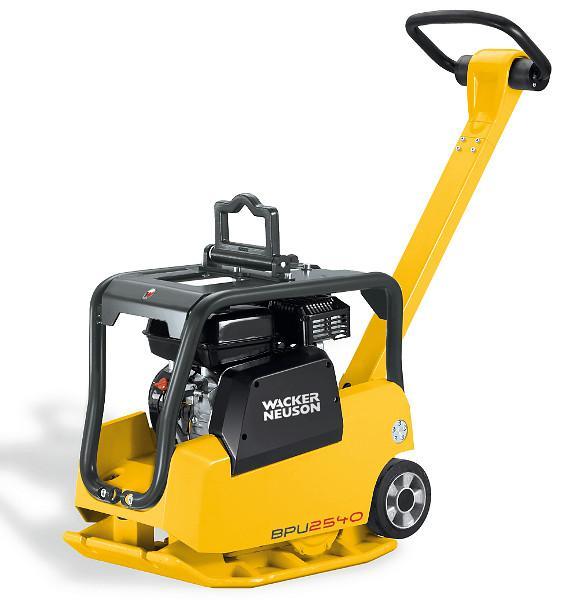

Reversible Plate Compactor Wacker Neuson BPU2540A 400mm Honda

Reversible Plate Compactor Wacker Neuson BPU2540A 400mm Honda Product code: WAC1030 £4955.00  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

wacker neuson logo

Please contact us for delivery time BEFORE ordering.

Versatile reversible plates ideal for compaction of interlocking paving stones, trenches, landscaping and maintenance. The only plates with a durable, integrated wheel set that provides for maximum built-in mobility. Single lever direction control provides for easy operation.


  • The unique, integrated wheel set simplifies the task of moving a reversible plate around the showroom, shop floor and job site.
  • An adjustable guide handle can be locked into a vertical position for easy transport and storage.
  • Heavy-duty frame features a central lifting point for easy on/off loading and placement of plate into trenches.
  • Tough ductile iron baseplate is extremely durable even under extreme conditions and provides for long service life.
  • Specially designed shockmount system offers a virtually vibration-free guide handle for increased operator comfort and reduced operator fatigue.


  • Part No. 500008758
  • Operating weight 140 kg
  • Working width 400 mm
  • Machine height 647 mm
  • Working height of handle (adjustable) 800 - 1.143 mm
  • Base plate thickness 10 mm
  • Max. centrifugal force 25 kN
  • Vibration frequency 90 Hz
  • Max. forward and reverse travel 21 m/min
  • Gradeability 30 %
  • Compacted area (depending on soil) 504 m2/h
  • Honda 5.5hp GX160 engine
  • Fuel consumption 0.8 l/h
  • Tank capacity 3.7 litres
  • Max. allowable tilt of engine in continuous operation 20 °
  • Power Trainfrom drive engine via centrifugal clutch and V-belt directly to the Exciter
