Scissor Grab Probst SG80-PGL2

Product Information

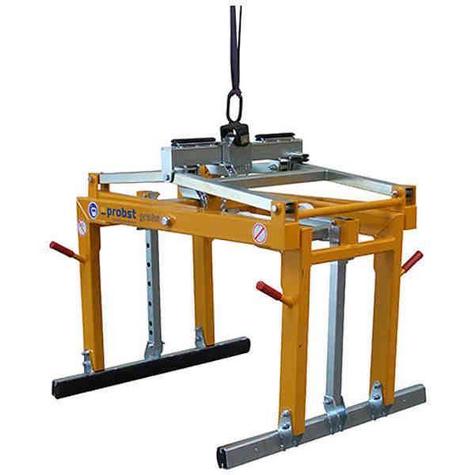

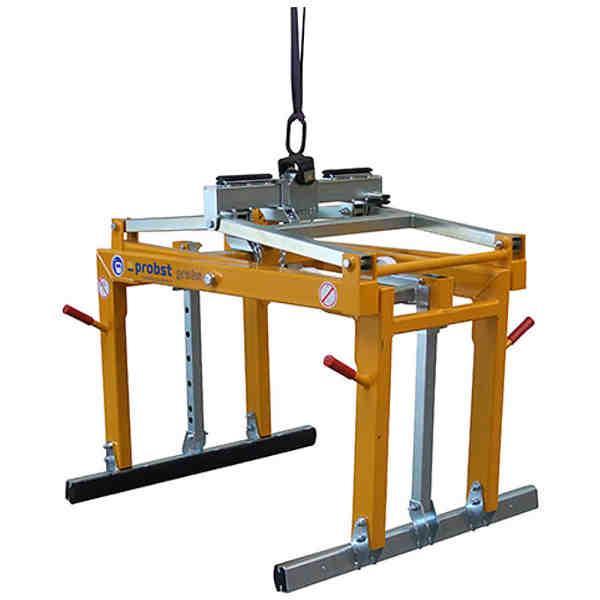

 Scissor Grab SG-80-PGL2

A mechanical grab universally suitable for use on building sites engaged in civil engineering work and paving work.

•  Model : SG80-PGL2
• Fork sleeves with manual turning device ET-D (with additional lifting eye for crane hook), ET-D/B as well as EH 3000 for crane hook operation to be ordered additionally as accessories.
• Large variable gripping range
• The SG grab handles pack sizes as show in the data below without any gripping width adjustment
• Safe and easy transport of un-palletised building materials such as vertically steel-strapped paving blocks, slabs, kerb stones etc.
• Man Code: 53100380
• Gripping Range W mm (in): 400 – 1,100 (15¾ – 43”)
• Inside Height E mm (in): 800 (31½”)
• Gripper Length L mm (in): 1,200 (47”)
• Working Load Limit WLL kg (Ibs): 1,800 (4,000)
• Dead Weight kg (Ibs): 230 (510)

Accessories Availible: (Not included with the PRB1367 above)

• Fork sleeves: manual turning device which engages itself every 90°. With security chain to avoid slipping.
• ET-D/B with wider distance between the sleeves and with longer sleeves, specially suitable for SG grabs
• Security Net SSN for operation of SG grabs in high-rise construction, is suspended underneath the load by hooking it into the handles of the SG grab.
• Products Descriptions  : (  please call for prices for below items )
• ET-D Carring Capacity: 2,500 kg (5,500 lbs)  code:  4310.0411
• EH3000 : lifting eye for crane hook operation   Carring Capacity 3,000 kg (6,600 lbs)   code: 4011.0086
• Suspension adapter AH-Ato use the SG 40-UK grab in combination with the forksleeves ET-D/B 4310.044231f20
• SSN- 1,2/1,4/0,9 for SG 40UK carrying capacity 1800kg code: 4520.0010
• SSN- 1,5/1, 3/1, 0 for SG60, SG80 SG100 carrying capacity 1800kg code: 4520.0061
