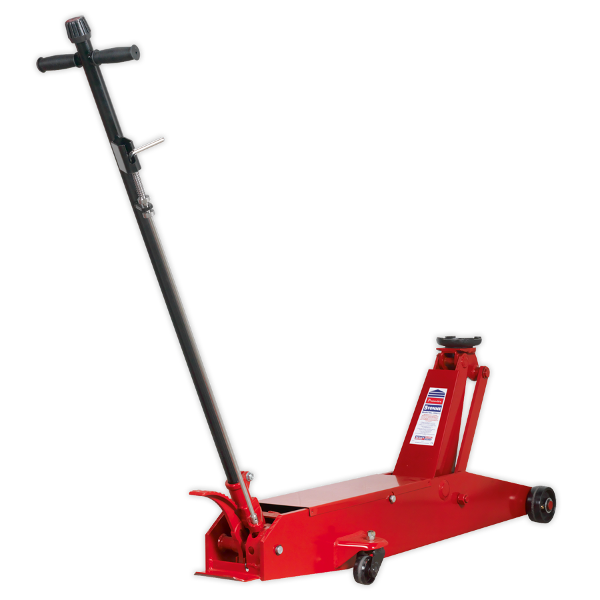

Sealey 5001 5ton Long Reach Trolley Jack

Sealey 5001 5 Tonne Long Reach Trolley Jack

Overview

The Sealey 5001 is a heavy-duty, long-reach trolley jack designed for professional automotive workshops and garages. With a 5-tonne lifting capacity, it is ideal for servicing larger vehicles, including vans, SUVs, and light commercial vehicles. Its extended chassis and foot-operated quick-lift system provide efficient and safe lifting in confined spaces.

Design and Build Quality

Constructed with a robust steel chassis and a one-piece hydraulic unit, the Sealey 5001 ensures durability and longevity. The jack features a large diameter saddle with a rubber pad to prevent damage to the vehicle's underside. Its long reach design allows access to deep jacking points, and the integrated tool tray offers convenient storage for wheel nuts and fittings.

Key Technologies and Features

• Long Reach Lifting Range: Minimum saddle height of 150mm and maximum saddle height of 600mm, accommodating a wide range of vehicles.
• Foot Pedal Quick Lift: Enables rapid approach of the lifting saddle to the vehicle, saving time and effort.
• Safety Release Mechanism: Handle-mounted safety release prevents inadvertent lowering, enhancing user safety.
• Integrated Tool Tray: Provides storage for loose wheel nuts and fittings, keeping them within easy reach during operations.
• Large Diameter Saddle: Facilitates easier positioning under the jacking point and includes a rubber jack pad to prevent damage to the vehicle's underside.

Specifications

Performance and User Experience

Users commend the Sealey 5001 for its robust construction and ease of use. The foot-operated quick lift system allows for rapid positioning, while the long reach design provides access to hard-to-reach jacking points. The safety release mechanism ensures controlled lowering, and the integrated tool tray adds convenience during operations.

Safety Guidelines

• Ensure the jack is in sound condition and good working order before use.
• Use the jack on level and solid ground, preferably concrete; avoid tarmacadam as the jack may sink in.
• Place chocks under the wheels of the vehicle and ensure the handbrake is engaged.
• Only place the jack under lifting points recommended by the vehicle manufacturer.
• Use suitable capacity axle stands under the vehicle before proceeding with any task.
• Do not exceed the rated capacity of the jack.
• Do not work under the vehicle until axle stands have been correctly positioned.
• Use hydraulic jack oil only; do not top up the hydraulic system with brake fluid.

Operating Instructions

1. Before first use, bleed the hydraulic circuit to eliminate any air from the system.
2. To raise the vehicle:
   • Ensure the release valve control knob is closed by turning it clockwise.
   • Use the foot pedal to quickly approach the lifting point.
   • Pump the jack handle to raise the vehicle to the desired height.
3. To lower the vehicle:
   • Ensure there are no persons or obstructions beneath the vehicle.
   • Slowly turn the release valve control knob anticlockwise to lower the vehicle in a controlled manner.

Maintenance

• Lubricate the ram, linkages, saddle, and pump mechanism with light oil monthly.
• Grease the lifting arm, wheel bearings, and axles regularly.
• Check and maintain the ram oil level; top up with clean hydraulic jack oil if necessary.
• Store the jack in the fully lowered position in a safe, dry, childproof area when not in use.

Q&A Section

Q: What is the lifting capacity of the Sealey 5001 Trolley Jack?

A: The Sealey 5001 has a lifting capacity of 5 tonnes, suitable for larger vehicles including vans and light commercial vehicles.

Q: What is the minimum and maximum saddle height?

A: The saddle height ranges from a minimum of 150mm to a maximum of 600mm, accommodating a variety of vehicle heights.

Q: Does the jack include a safety release mechanism?

A: Yes, it features a handle-mounted safety release to prevent inadvertent lowering, enhancing user safety.

Q: Is the jack suitable for use on tarmacadam surfaces?

A: It is recommended to use the jack on level and solid ground, preferably concrete, as it may sink into tarmacadam surfaces.

Q: What maintenance is required for the jack?

A: Regular lubrication of moving parts, checking and maintaining oil levels, and storing the jack in a fully lowered position are essential for optimal performance.
