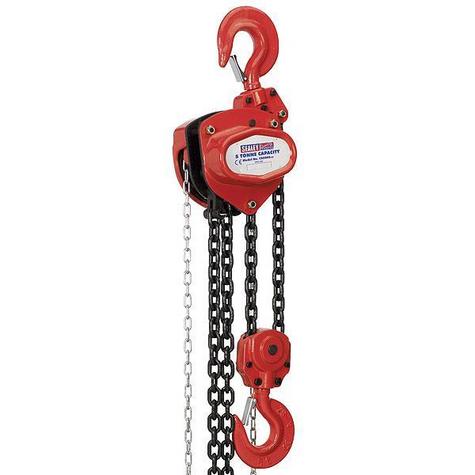

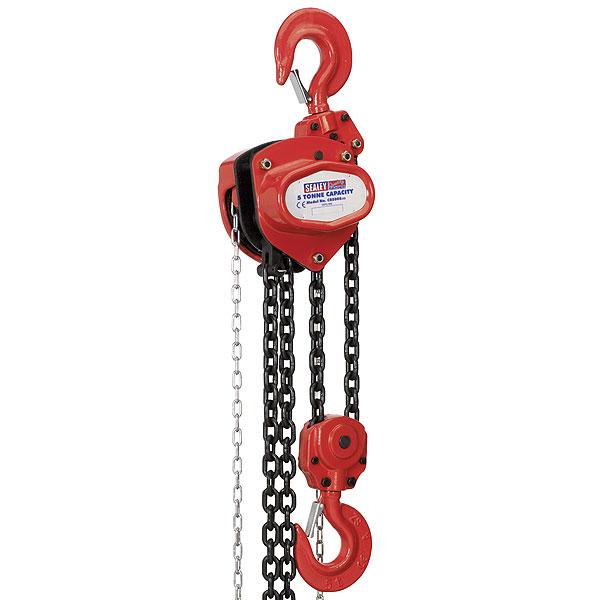

The Sealey CB5000 is a robust and reliable chain block designed for heavy-duty lifting applications. With a safe working load of 5 tonnes and a standard lift height of 3 metres, it is ideal for use in workshops, garages, and industrial environments where precise and controlled lifting of substantial loads is required.
Constructed with a compact gear housing, the CB5000 is suitable for operations where headroom is limited. The unit features a heat-treated and ground, triple-spur geared shaft and pinion, ensuring durability and smooth operation. The load chains are manufactured from hardened alloy material, and the load hooks are equipped with safety latches for secure lifting.
| Specification | Details |
|---|---|
| Model Number | CB5000 |
| Safe Working Load | 5000kg |
| Standard Lift | 3 metres |
| Load Chain Diameter | 10mm |
| Head Room | 588mm |
| Hook Aperture | 50mm |
| Maximum Hook Capacity Diameter | 65mm |
| Pulling Effort | 42.22kgf |
| Nett Weight | 43kg |
The Sealey CB5000 delivers consistent and reliable lifting performance. Its mechanical load brake ensures that loads are held securely during lifting, providing peace of mind to operators. The compact design allows for use in confined spaces, and the hardened alloy chains contribute to the unit's overall durability and longevity.
Q: What is the maximum weight the Sealey CB5000 can lift?
A: The CB5000 has a safe working load of 5000kg.
Q: Can the CB5000 be used in areas with limited headroom?
A: Yes, the compact gear housing design allows for operation in spaces where headroom is restricted.
Q: Does the chain block come with safety features?
A: Absolutely, it includes a mechanical load brake for secure lifting and load hooks with safety latches to prevent accidental release.
