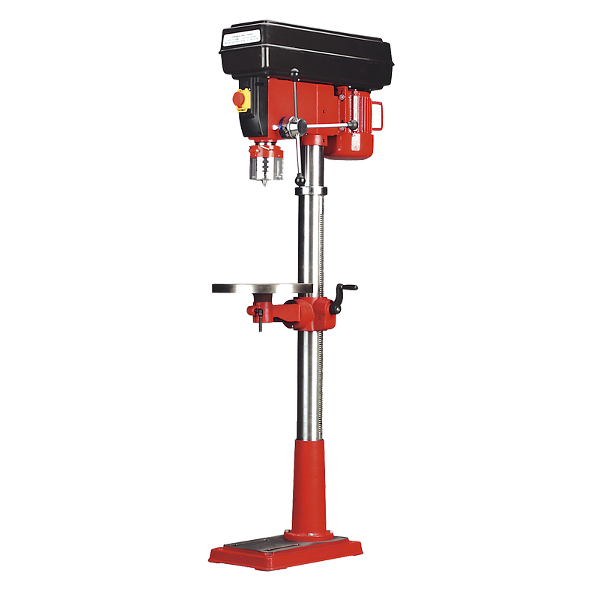

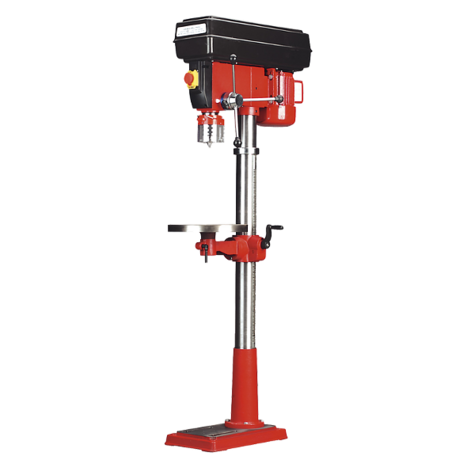

The Sealey GDM200F/VS is a precision-engineered variable speed floor pillar drill designed for use in workshops, garages, and educational settings. Combining a heavy-duty build with modern variable speed control, this model offers users fine-tuned drilling for a range of materials including wood, plastic, and metal--all while maintaining optimum control and safety.
Featuring a strong cast iron base and column with a diameter of 80mm, the GDM200F/VS provides outstanding rigidity during operation. The Ø310mm round table can be tilted and adjusted vertically using a rack and pinion system for exact positioning. This drill is equipped with an aluminium-bodied motor and a variable pulley system that delivers smooth and precise control over drilling speeds, backed by thoughtful safety features like an interlocked chuck guard and no-volt release switch.
| Specification | Details |
|---|---|
| Model Number | GDM200F/VS |
| Drilling Capacity | 16mm |
| Spindle Taper | MT2 |
| Speed Range | 150-2,300rpm (variable) |
| Motor Power | 450W (650W input) / 230V |
| Column Diameter | Ø80mm |
| Spindle Travel | 80mm |
| Max Spindle to Table | 730mm |
| Max Spindle to Base | 1170mm |
| Table Size | Ø310mm |
| Working Base Surface | 200 x 220mm |
| Overall Base Size | 460 x 275mm |
| Overall Height | 1630mm |
| Weight | 71kg |
The GDM200F/VS offers excellent performance with its variable speed control, making it ideal for fine drilling work or when transitioning between different materials. The variable speed belt system eliminates the need for manual belt changes, simplifying operation. Its quiet motor, robust column, and wide base contribute to a smooth and stable user experience, even under prolonged use.
Q: Can the Sealey GDM200F/VS be used for angled drilling?
A: Yes, the Ø310mm table tilts to support angled drilling operations and is easily adjustable via rack and pinion.
Q: Is the speed truly variable without belt changes?
A: Yes, the GDM200F/VS uses a variable pulley system that allows stepless speed control without manually adjusting belts.
Q: Is this drill suitable for industrial use?
A: Absolutely. Its heavy-duty build and variable speed control make it ideal for industrial and high-precision applications.
Q: What safety features are included?
A: The drill includes a no-volt release switch and an electrically interlocked chuck guard, ensuring safe operation in any environment.
