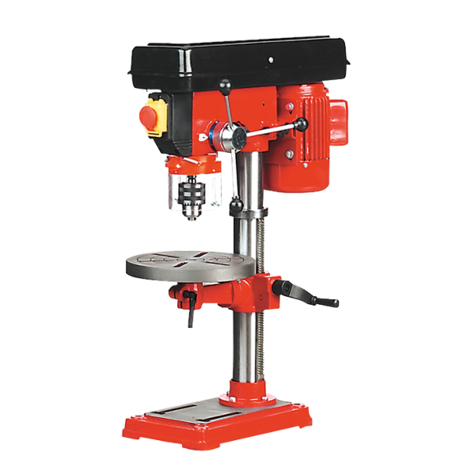

Sealey GDM50B 5-Speed Bench Pillar Drill
Ask a Question
Pillar Drill Bench 5-Speed 745mm Height 370W/230V
- One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
- Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
- Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
- Models GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
- All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- Mortise attachments are available for all models GDM120B - GDM200F inclusive.
- Make: Sealey
- Model No.: GDM50B
- Drilling Capacity (Chuck Size): 16mm
- Spindle Nose Taper: MT2
- Swing: 314mm
- Spindle Centre to Column: 127mm
- Spindle Travel: 60mm
- Number of Speeds: 5
- Speed Range: 460-2890rpm
- Maximum Distance Spindle to Table: 275mm
- Maximum Distance Spindle to Base: 385mm
- Working Table Surface Size: Ø250mm
- Working Base Surface Size: 155 x 165mm
- Overall Base Size: 340 x 210mm
- Column Diameter: 60mm
- Collar Diameter: 55mm
- Overall Height: 745mm
- Motor Power: 220W - 230V
- Input Power: 370W - 230V
- Weight: 35kg
- Optional Keyless Chuck: GDMX/KC
