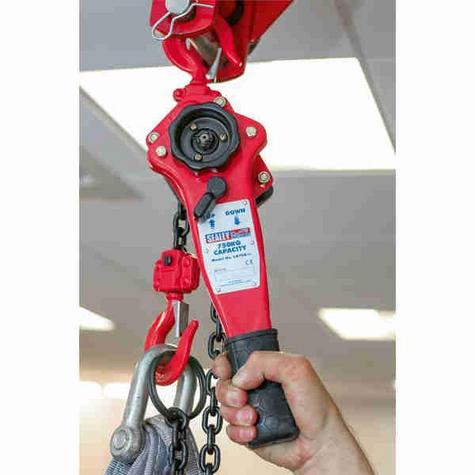

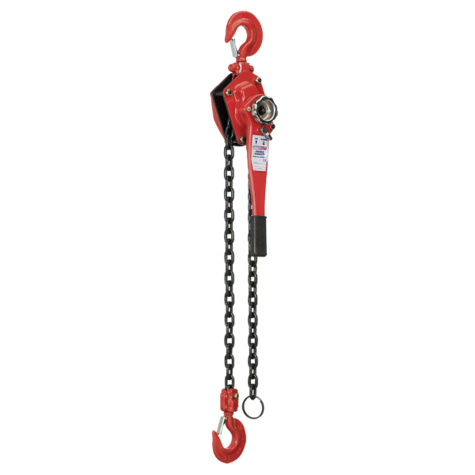

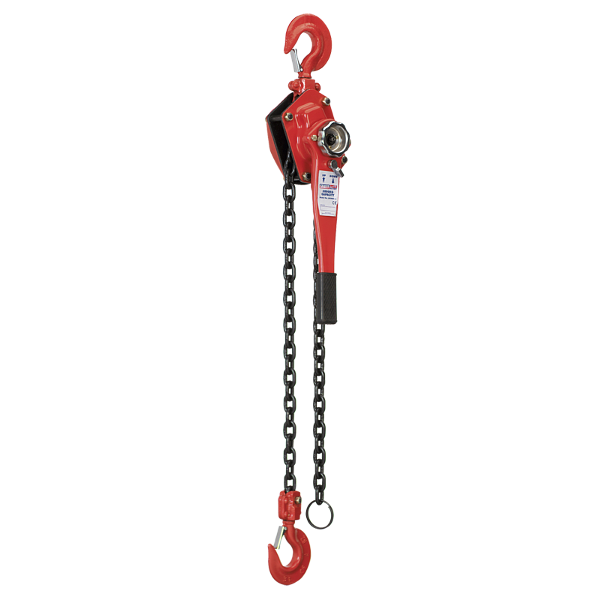

Sealey LH3000 Steel 3000kg Lever Hoist

Lever Hoist Steel 3000kg

• Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.
• Equipped with heavy-duty brake and high quality alloy steel chain for durable and safe operation.
• Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.

Specifications

• Make: Sealey
• Model No.: LH3000
• Capacity: 3000kg
• Test Load: 4500kg
• Pull on Lever to Lift Full Load: 33kgf
• Load Chain Ø: 10mm
• Chain Falls: 1
• Chain Length: 1.5mtr
• Overall Depth: 200mm
• Lever Length: 410mm
• Head Room: 400mm
• Overall Width: 180mm
• Operating Clearance: 108mm
• Hook Aperture: 40mm
• Maximum Hook Capacity: 50mm
• Weight: 24kg
• For Warranty see: Sealey Warranties
• Standard delivery: 2-3 days
