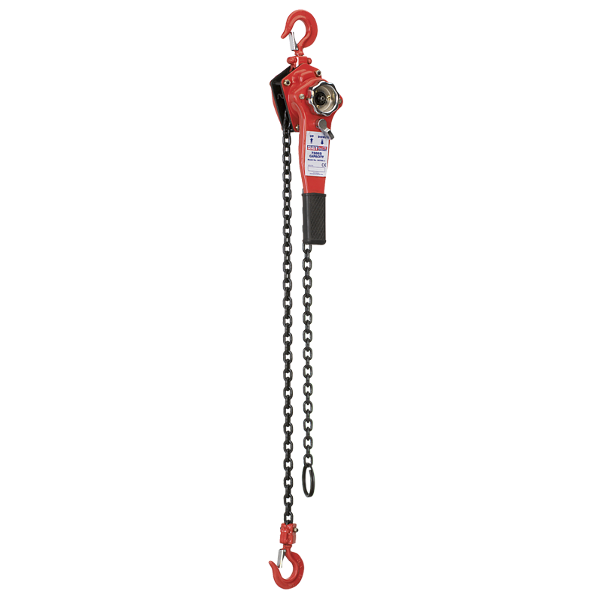

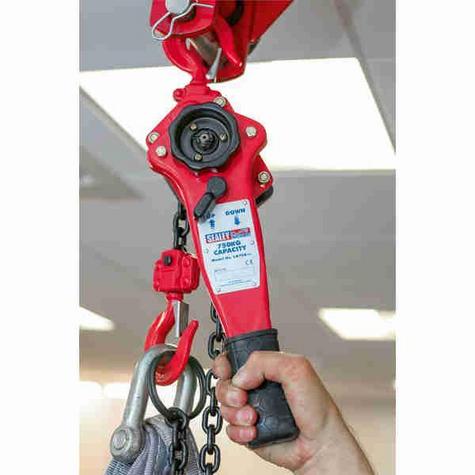

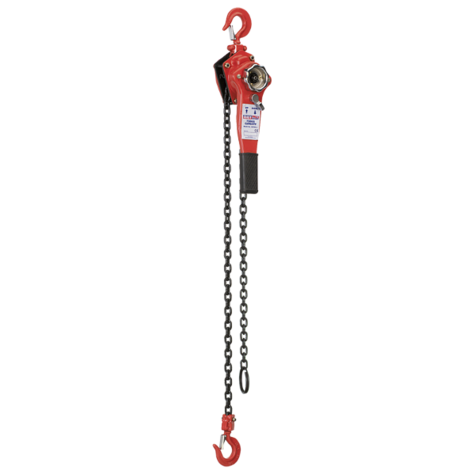

The Sealey LH750 is a robust and reliable lever hoist designed for lifting and pulling applications in workshops, garages, and industrial environments. With a safe working load of 750kg and a standard lift height of 1.5 metres, it ensures precise and controlled handling of heavy loads.
Constructed with a rugged steel body, the LH750 features drop-forged and heat-treated pinion gear with totally enclosed mechanisms, providing durability and smooth operation. The high-quality alloy steel load chain enhances strength and longevity, while the compact design allows for use in confined spaces.
| Specification | Details |
|---|---|
| Model Number | LH750 |
| Safe Working Load | 750kg |
| Standard Lift | 1.5 metres |
| Load Chain Diameter | 6mm |
| Headroom | 275mm |
| Hook Aperture | 25mm |
| Maximum Hook Capacity Diameter | 37mm |
| Lever Length | 280mm |
| Operating Clearance | 99mm |
| Pull on Lever to Lift Full Load | 14kgf |
| Test Load | 1125kg |
| Nett Weight | 7kg |
The Sealey LH750 delivers consistent and reliable performance in lifting and pulling tasks. Its free-chaining feature allows for quick load attachment, while the heavy-duty brake ensures that loads are held securely during operation. The compact and lightweight design makes it easy to transport and operate, even in confined spaces.
Q: What is the maximum weight the Sealey LH750 can lift?
A: The LH750 has a safe working load of 750kg.
Q: Can the LH750 be used in areas with limited space?
A: Yes, its compact and lightweight design allows for operation in confined spaces.
Q: Does the lever hoist come with safety features?
A: Absolutely, it includes a heavy-duty brake for secure load holding and a free-chaining mechanism for efficient load attachment.
