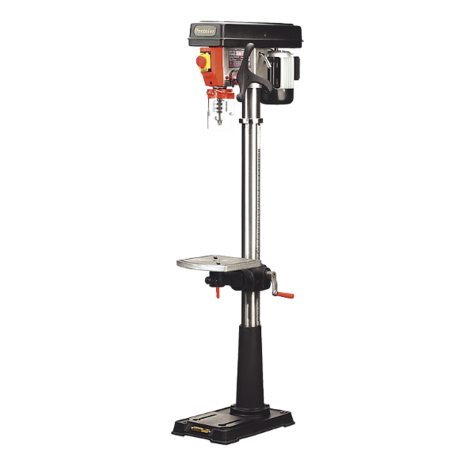

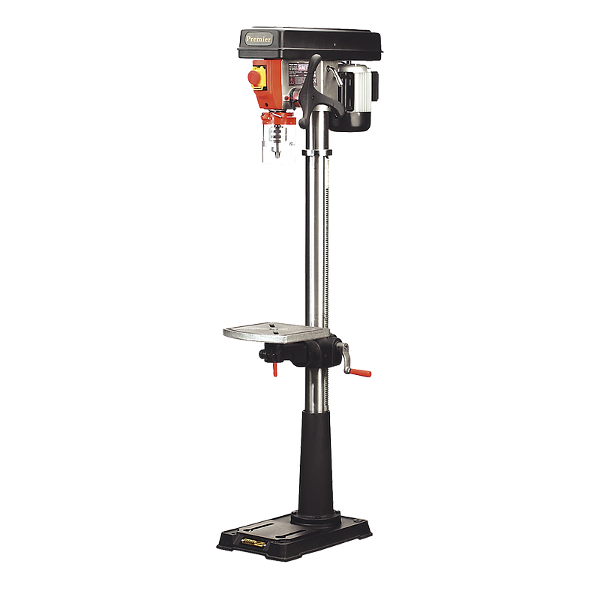

Sealey PDM170F 16-Speed Floor Pillar Drill

Floor Pillar Drill Sealey PDM170F 16-Speed Product code: SEA1229 £578.05  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Pillar Drill Floor Premier 16-Speed 1610mm Height 230V

  • One of a comprehensive range of floor pillar drills for the professional workshop.
  • Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
  • Features heavy-duty aluminium-bodied motor for long and reliable performance.
  • Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
  • Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
  • Supplied with flip-up chuck guard.
  • Large sized square table fitted with precision rack and pinion height adjustment.


    • Make: Sealey
    • Model No.: PDM170F
    • Drilling Capacity (Chuck Size): 16mm
    • Spindle Nose Taper: MT2
    • Swing: 413mm
    • Spindle Centre to Column: 170mm
    • Spindle Travel: 80mm
    • Number of Speeds: 16
    • Speed Range: 190-3000rpm
    • Maximum Distance Spindle to Table: 770mm
    • Maximum Distance Spindle to Base: 1255mm
    • Working Table Surface Size: 254 x 254mm
    • Working Base Surface Size: 205 x 200mm
    • Overall Base Size: 450 x 270mm
    • Column Diameter: 73mm
    • Collar Diameter: 55mm
    • Overall Height: 1610mm
    • Motor Power: 370W - 230V
    • Input Power: 550W - 230V
    • Weight: 58kg
    • Optional Keyless Chuck 16mm: PDM/KC
    • Integral Work Light: No
    • For Warranty see: Sealey Warranties
    • Standard delivery:2-3 days
