Product Information

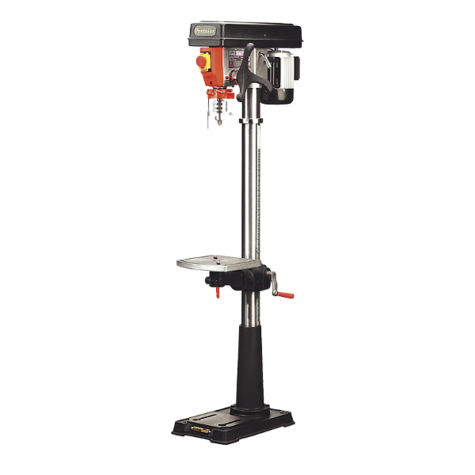

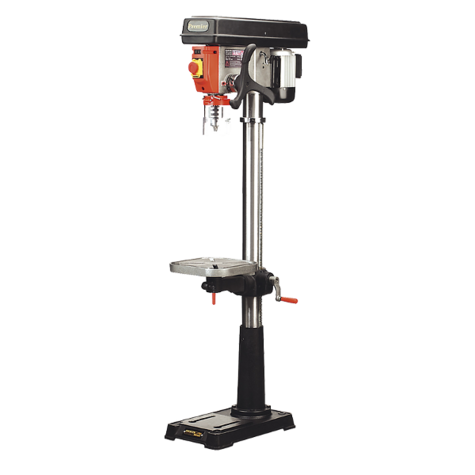

Pillar Drill Floor Premier 16-Speed 1610mm Height 230V

• One of a comprehensive range of floor pillar drills for the professional workshop.
• Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
• Supplied with flip-up chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.

Specifications

• Make: Sealey
• Model No.: PDM210F
• Drilling Capacity (Chuck Size): 16mm
• Spindle Nose Taper: MT2
• Swing: 460mm
• Spindle Centre to Column: 190mm
• Spindle Travel: 80mm
• Number of Speeds: 16
• Speed Range: 190-3000rpm
• Maximum Distance Spindle to Table: 725mm
• Maximum Distance Spindle to Base: 1225mm
• Working Table Surface Size: 290 x 290mm
• Working Base Surface Size: 205 x 200mm
• Overall Base Size: 495 x 290mm
• Column Diameter: 80mm
• Collar Diameter: 60mm
• Overall Height: 1610mm
• Motor Power: 370W - 230V
• Input Power: 550W - 230V
• Weight: 68kg
• Optional Keyless Chuck 16mm: PDM/KC
• Integral Work Light: Yes
• For Warranty see: Sealey Warranties
