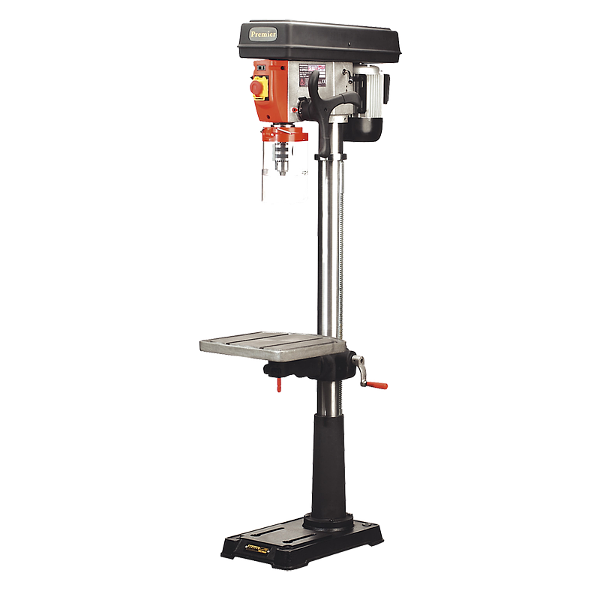

Sealey PDM240F 16-Speed Floor Pillar Drill

Floor Pillar Drill Sealey PDM240F 16-Speed Product code: SEA1231 £919.04  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Pillar Drill Floor Premier 16-Speed 1635mm Height 230V

  • One of a comprehensive range of floor pillar drills for the professional workshop.
  • Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
  • Features heavy-duty aluminium-bodied motor for long and reliable performance.
  • Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
  • Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
  • Supplied with flip-up chuck guard.
  • Large sized square table fitted with precision rack and pinion height adjustment.


    • Make: Sealey
    • Model No.: PDM240F
    • Drilling Capacity (Chuck Size): 20mm
    • Spindle Nose Taper: MT3
    • Swing: 512mm
    • Spindle Centre to Column: 216mm
    • Spindle Travel: 80mm
    • Number of Speeds: 16
    • Speed Range: 160-3000rpm
    • Maximum Distance Spindle to Table: 720mm
    • Maximum Distance Spindle to Base: 1230mm
    • Working Table Surface Size: 356 x 356mm
    • Working Base Surface Size: 205 x 200mm
    • Overall Base Size: 495 x 290mm
    • Column Diameter: 80mm
    • Collar Diameter: 75mm
    • Overall Height: 1635mm
    • Motor Power: 750W - 230V
    • Input Power: 925W - 230V
    • Weight: 86kg
    • Optional Keyless Chuck 16mm: PDM/KC
    • Integral Work Light: Yes
    • For Warranty see: Sealey Warranties
    • Standard delivery:2-3 days
