Product Information

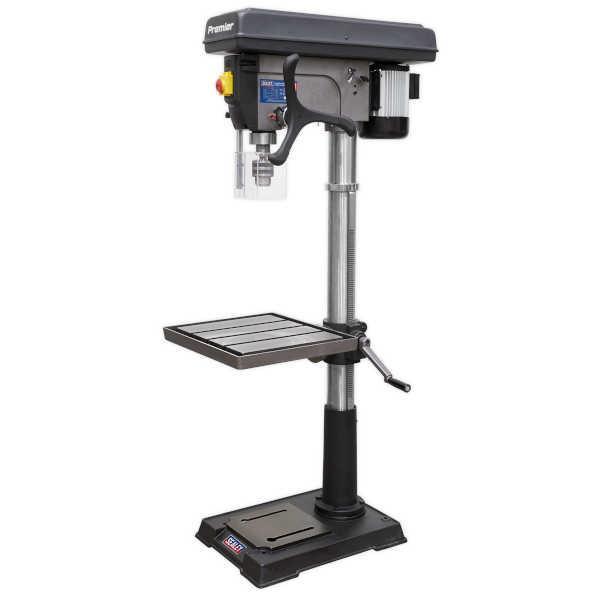

Pillar Drill Floor Premier 12-Speed 1710mm Height 230V

• One of a comprehensive range of floor pillar drills for the professional workshop.
• Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
• Supplied with flip-up chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.

Specifications

• Make: Sealey
• Model No.: PDM260F
• Drilling Capacity (Chuck Size): 20mm
• Spindle Nose Taper: MT4
• Swing: 612mm
• Spindle Centre to Column: 260mm
• Spindle Travel: 120mm
• Number of Speeds: 12
• Speed Range: 120-3480rpm
• Maximum Distance Spindle to Table: 680mm
• Maximum Distance Spindle to Base: 1160mm
• Working Table Surface Size: 425 x 475mm
• Working Base Surface Size: 410 x 330mm
• Overall Base Size: 575 x 455mm
• Column Diameter: 92mm
• Collar Diameter: 85mm
• Overall Height: 1710mm
• Motor Power: 750W - 230V
• Input Power: 925W - 230V
• Weight: 125kg
• Optional Keyless Chuck 16mm: PDM/KC
• Integral Work Light: Yes
• For Warranty see: Sealey Warranties
• Standard delivery:2-3 days
