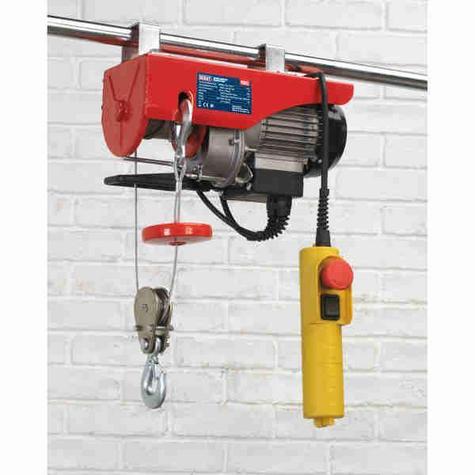

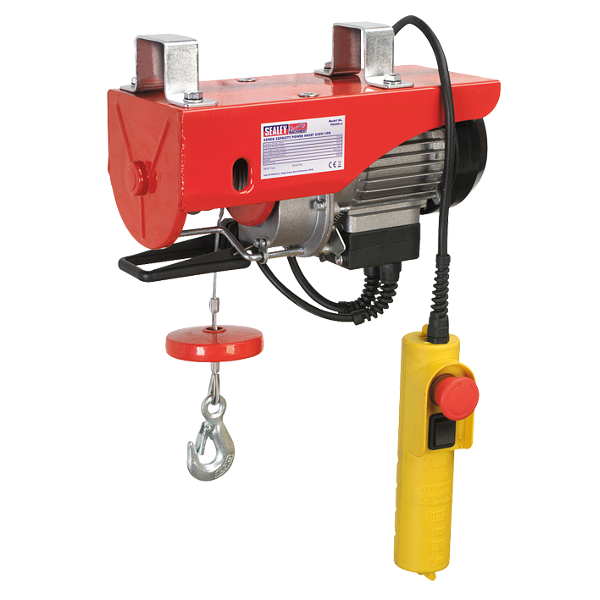

The Sealey PH250 is a compact and efficient electric power hoist designed for a range of lifting tasks in workshops, garages, warehouses, and light industrial environments. With a 250kg maximum lifting capacity and dual hook operation, it offers flexible and safe load handling supported by reliable 230V mains power.
Built to comply with EU and UK lifting gear regulations, the PH250 features a durable steel construction with sealed motor housing and high-tensile wire rope. Its lightweight frame and included support brackets allow for quick, stable mounting to secure beam structures or frames. The IP54-rated motor housing provides protection from dust and splashing water, extending its operational life in diverse settings.
| Specification | Details |
|---|---|
| Model Number | PH250 |
| Safe Working Load (Single Hook) | 125kg |
| Safe Working Load (Double Hook) | 250kg |
| Lift Height (Single Hook) | 12m |
| Lift Height (Double Hook) | 6m |
| Lift Speed | 8m/min (Single Hook) |
| Motor Power | 500W |
| Voltage | 230V / 50Hz |
| Current | 2.2A |
| Rope Diameter | 3mm |
| Rope Tensile Strength | 1870N/mm˛ |
| Insulation Class | Class B |
| IP Rating | IP54 |
| Work Rate | S3 - Intermittent Use |
| Nett Weight | 9.6kg |
The Sealey PH250 power hoist offers a dependable and user-friendly solution for controlled lifting. Its dual lifting configurations, straightforward mounting, and compact profile make it ideal for a wide range of hoisting jobs. Operators benefit from the added safety of the integrated limit switch and the convenience of remote pendant control, improving workflow and load management in elevated or awkward spaces.
Q: What voltage is required to operate the Sealey PH250?
A: The PH250 operates on a standard 230V single-phase (1ph) power supply.
Q: Can this hoist be used with a double line configuration?
A: Yes, using the included pulley hook enables double-line operation, increasing lifting capacity to 250kg and halving the lift height to 6m.
Q: Does the hoist include mounting hardware?
A: Yes, it comes with two mounting brackets suitable for installation on standard crossbeams.
