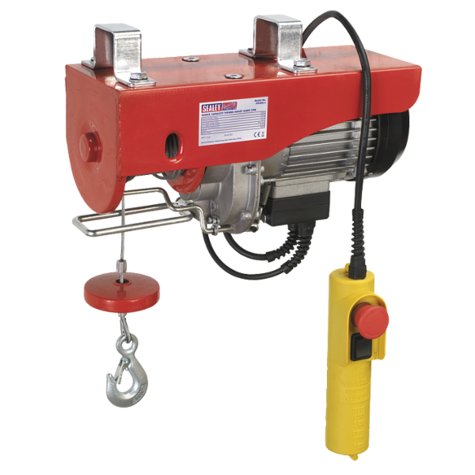

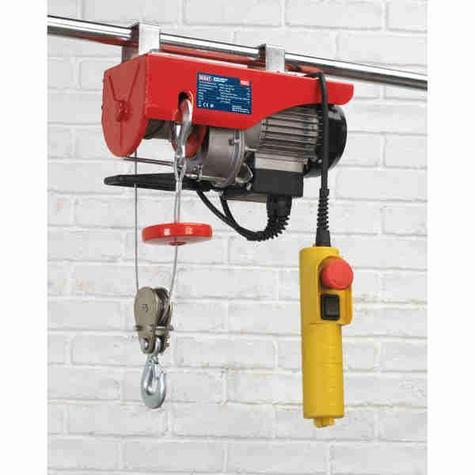

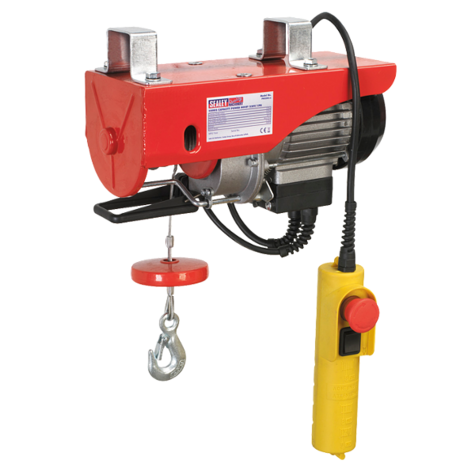

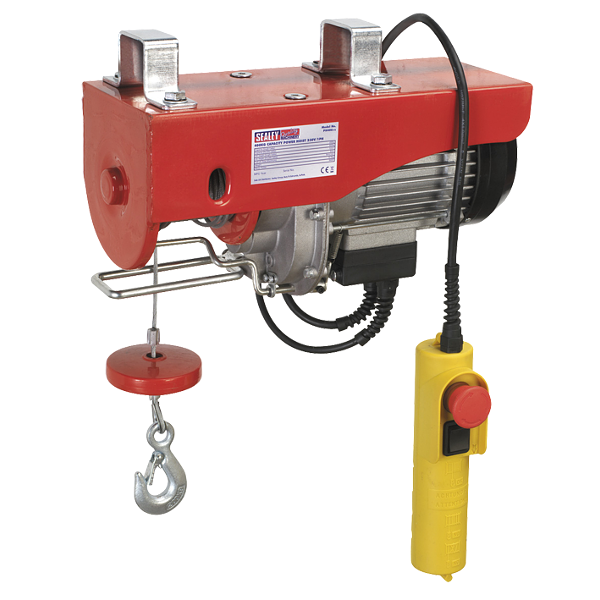

The Sealey PH400 is a robust electric power hoist designed for efficient and safe lifting in commercial, industrial, and workshop settings. With a maximum lifting capacity of 400kg and dual-cable operation options, it is well-suited for a variety of material handling tasks. This 230V hoist provides powerful and consistent performance with minimal operator effort.
Engineered with a durable powder-coated steel body and a fully enclosed motor, the PH400 meets EU and UK lifting standards. It features a high-tensile wire rope, precision gearing, and a compact, mountable form factor. The IP54-rated motor housing protects against dust and light water ingress, while supplied brackets ensure secure beam or gantry installation.
| Specification | Details |
|---|---|
| Model Number | PH400 |
| Safe Working Load (Single Cable) | 200kg |
| Safe Working Load (Double Cable) | 400kg |
| Lift Height (Single Cable) | 12m |
| Lift Height (Double Cable) | 6m |
| Lift Speed | 8m/min |
| Motor Power | 750W |
| Voltage | 230V / 50Hz |
| Current | 3.3A |
| Rope Diameter | 3.8mm |
| Minimum Rope Tensile Strength | 1770N/mm˛ |
| Insulation Class | Class B |
| IP Rating | IP54 |
| Work Rate | S3 - Intermittent Duty |
| Group of Mechanisms | M1 |
| Nett Weight | 16kg |
The PH400 offers a seamless balance of lifting speed, capacity, and safety. Its user-friendly pendant controller ensures precision operation, while the built-in safety features and strong mechanical components support long-term performance. Whether for suspended loads or vertical lifting, this hoist is a practical addition to any lifting setup.
Q: What is the maximum load the Sealey PH400 can handle?
A: The PH400 can handle 400kg in double cable mode and 200kg in single cable mode.
Q: Does the PH400 come with safety mechanisms?
A: Yes, it includes an upper limit switch and overload protection for safe operation.
Q: What power supply does this hoist use?
A: It operates on a standard 230V single-phase (1ph) mains power supply.
