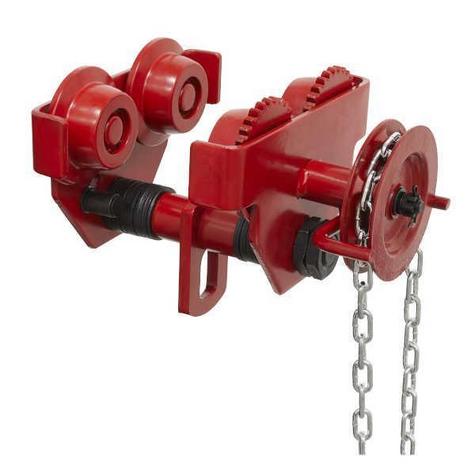

Sealey PT1000G 1ton Geared Trolley

£164.43
Beam Trolley Sealey PT1000G 1ton Geared Product code: SEA1576 £164.43  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Trolley Geared 1tonne

  • Suitable for use with our lever hoists or chain blocks.
  • Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
  • Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Specifications

    • Make: Sealey
    • Model No.: PT1000G
    • Capacity: 1000kg
    • Test Load: 1500kg
    • Track Width Adjustable Range: 64-140mm
    • Minimum Curve Radius: 1000mm
    • A 255mm
    • B 205mm
    • C 135mm
    • D 104mm
    • E 128mm
    • Weight: 17kg
    • Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
    • Maximum Distance Between Spans: 2500mm
    • Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
    • Maximum Distance Between Spans: 6000mm
    • Refer to catalogue for diagram.
    • For Warranty see: Sealey Warranties
    • For Warranty see: Sealey Warranties
    • Standard delivery: 2-3 days
