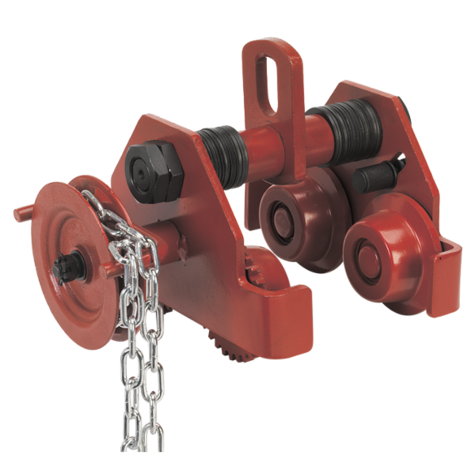

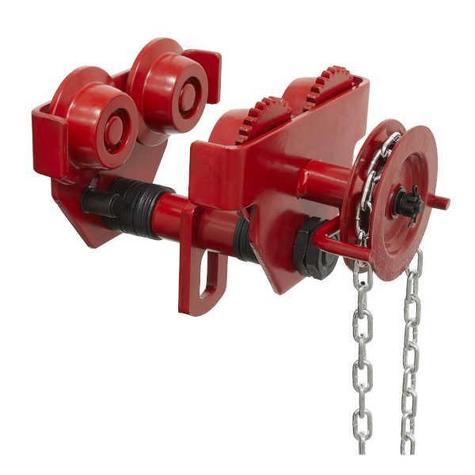

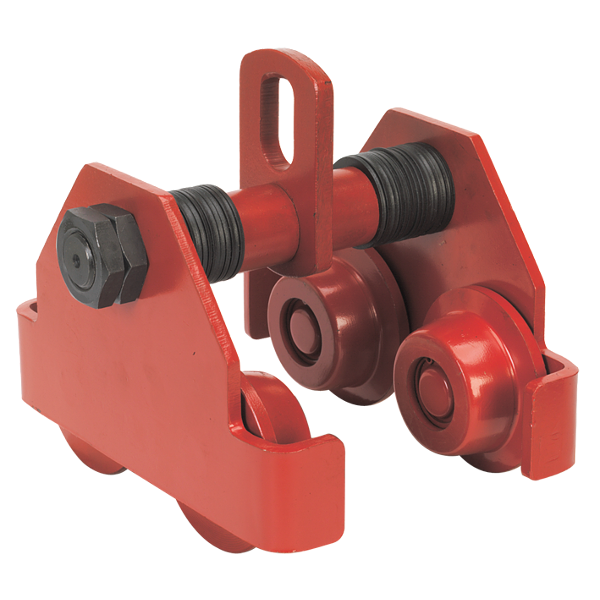

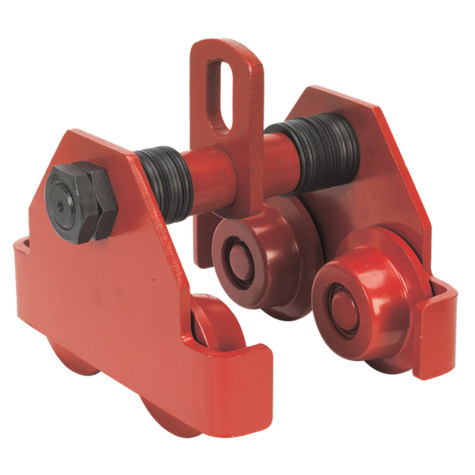

Sealey PT2000 2ton Plain Trolley

Trolley Plain 2tonne

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Specifications

• Make: Sealey
• Model No.: PT2000
• Capacity: 2000kg
• Test Load: 3000kg
• Track Width Adjustable Range: 76-165mm
• Minimum Curve Radius: 1300mm
• A 305mm
• B 150mm
• C 150mm
• D 130mm
• E 152mm
• Weight: 20kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6.0mm
• Maximum Distance Between Spans: 3000mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9.0mm
• Maximum Distance Between Spans: 9000mm
• Refer to catalogue for diagram
• For Warranty see: Sealey Warranties
• Standard delivery: 2-3 days

Instructions
