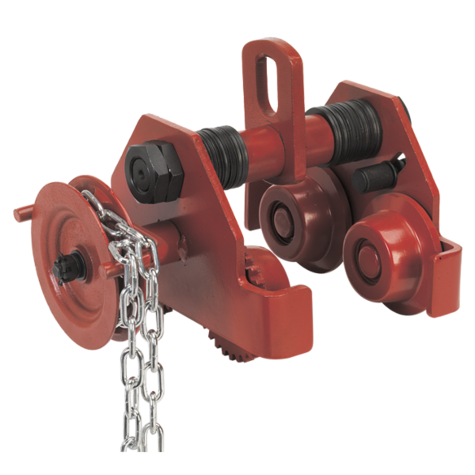

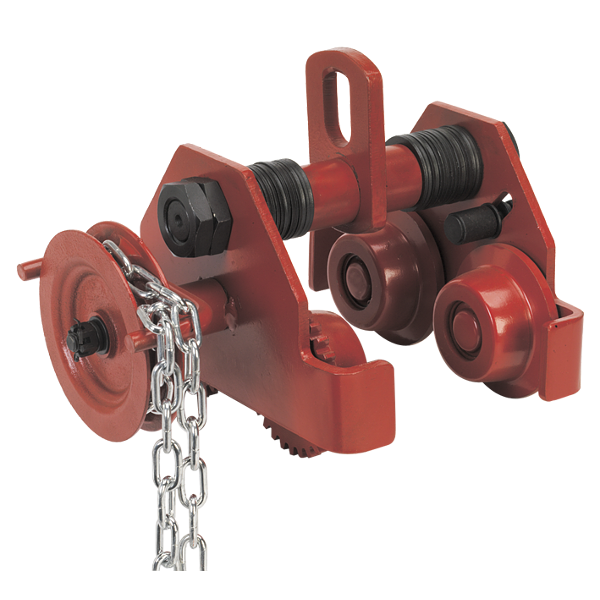

The Sealey PT3000G 3-Tonne Geared Trolley is engineered to facilitate the precise and effortless horizontal movement of heavy loads along I-beams or RSJs. Designed for professional and industrial applications, this trolley provides a secure attachment point for hoists, chain blocks, and other lifting equipment, enhancing efficiency and safety in load handling operations.
Constructed from robust steel, the PT3000G ensures durability and reliable performance under substantial loads. Its adjustable track width accommodates various beam sizes, while the geared mechanism allows for precise load positioning using a hand chain. The trolley incorporates wheel guards to prevent contact with other trolleys mounted on the same load bearer, enhancing operational safety.
| Specification | Details |
|---|---|
| Model Number | PT3000G |
| Maximum Load Capacity | 3000kg |
| Test Load | 4500kg |
| Adjustable Beam Width | 76-203mm |
| Minimum Curve Radius | 1500mm |
| Dimensions (A x B x C x D x E) | 344mm x 250mm x 180mm x 150mm x 200mm |
| Nett Weight | 41kg |
| Minimum Standard I-Beam Dimensions (D x W x Web) | 200 x 100 x 7mm |
| Maximum Distance Between Spans | 2700mm |
| Maximum Standard I-Beam Dimensions (D x W x Web) | 850 x 150 x 9mm |
| Maximum Distance Between Spans | 4500mm |
Users of the Sealey PT3000G appreciate its sturdy construction and the ease of maneuvering heavy loads along beams. The geared mechanism allows for precise control with minimal physical effort, enhancing efficiency in load handling tasks. The adjustable track width ensures compatibility with various beam sizes, making it a versatile addition to lifting operations.
Q: How does the geared mechanism of the PT3000G enhance load movement?
A: The geared mechanism allows users to move heavy loads along the beam using a hand chain, providing precise control and reducing the manual effort required compared to plain trolleys.
Q: Is the PT3000G compatible with all types of hoists?
A: The PT3000G is designed to be compatible with various lever hoists and chain blocks. Ensure that the hoist's capacity does not exceed the trolley's maximum load capacity of 3000kg.
Q: Can the PT3000G be used on curved beams?
A: The PT3000G is designed for use on beams with a minimum curve radius of 1500mm. Using it on beams with a tighter curve radius may impair functionality and safety.
Q: What safety precautions should be taken when using the PT3000G?
A: Always inspect the trolley for any signs of wear or damage before use. Ensure that the beam to which the trolley is attached can support the intended load. Follow all operational guidelines provided by the manufacturer, and do not exceed the maximum load.
