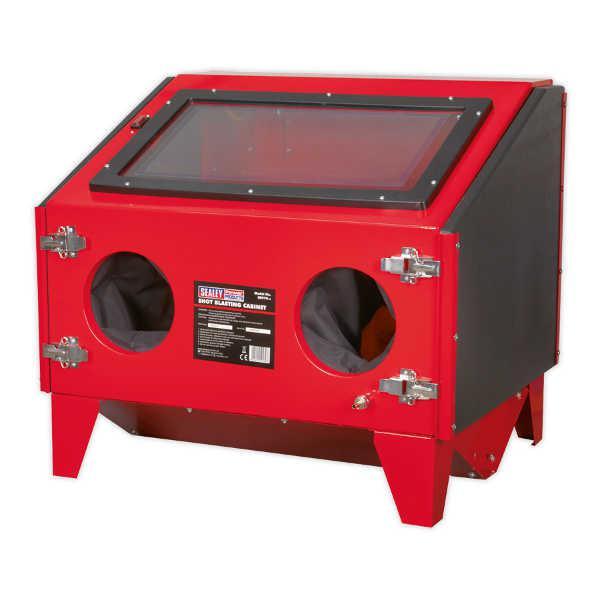

The Sealey SB970 is a robust shot blasting cabinet designed for efficient cleaning of various components in workshop and bodyshop environments. Its double access doors facilitate the handling of bulkier items, making it ideal for refurbishing metal parts by removing rust, paint, and other surface contaminants.
Constructed with heavy-duty steel, the SB970 ensures durability and stability during operation. The cabinet features a toughened glass viewing screen with integral low voltage illumination, enhancing visibility and precision during blasting tasks. Two large side doors provide easy access for larger workpieces, and the inclusion of a Ø34mm dust extraction port helps maintain a clear view and clean working environment.
| Specification | Details |
|---|---|
| Model Number | SB970 |
| Overall Dimensions (W x D x H) | 695 x 580 x 625 mm |
| Door Size | Width: 525 mm; Min./Max. Height: 240/430 mm |
| Viewing Area | 485 x 275 mm |
| Operating Pressure | 60-85 psi |
| Air Consumption | 10 cfm |
| Air Inlet Size | 1/4" BSP |
| Dust Extraction Port Diameter | Ø34 mm |
| Net Weight | 24.0 kg |
The SB970 delivers consistent and effective cleaning performance, efficiently removing surface contaminants from various components. Its double access doors simplify the handling of larger items, while the internal illumination and clear viewing area enhance user experience by providing excellent visibility during operation. The inclusion of a dust extraction port contributes to maintaining a cleaner work environment.
Q: What types of abrasive media are compatible with the SB970?
A: The SB970 is suitable for use with various abrasive media, including glass beads, aluminium oxide, and other proprietary brands of blasting media.
Q: Does the SB970 come with any accessories?
A: Yes, the SB970 is supplied with a sand blasting gun, three spare ceramic nozzles, and a pack of 10 screen covers for the viewing window.
Q: Is an air compressor included with the SB970?
A: No, the SB970 requires a standard, dry workshop air supply and does not include an air compressor. Users should ensure they have a compatible air supply to operate the cabinet effectively.
Q: Can the viewing screen be replaced if it becomes worn or damaged?
A: Yes, the SB970 features a replaceable viewing screen, allowing users to maintain clear visibility and extend the cabinet's service life.
Q: What are the power requirements for the internal illumination?
A: The internal illumination operates on low voltage supplied by an external power source. Users should refer to the included instructions for specific voltage and connection requirements.
