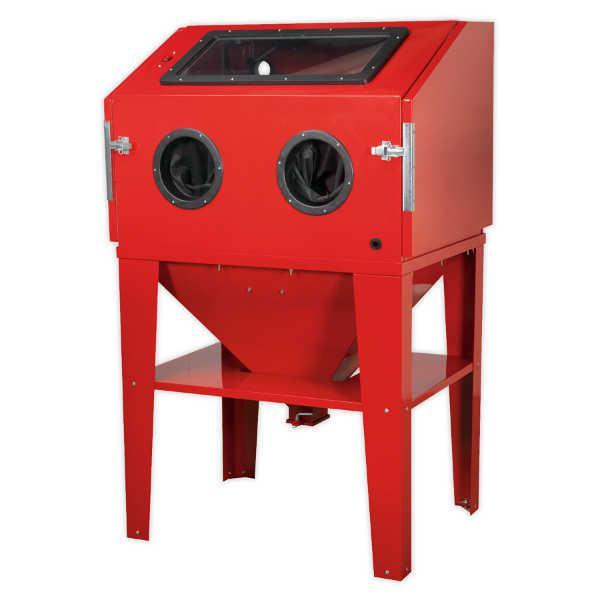

The Sealey SB974 is a robust shot blasting cabinet designed for the efficient removal of rust, paint, and other surface contaminants from various components. Its double-door design facilitates easy access to larger workpieces, making it ideal for professional workshops and automotive restoration tasks.
Constructed from heavy-duty steel, the SB974 ensures durability and stability during operation. The cabinet features toughened glass viewing screens with integral low-voltage illumination, enhancing visibility and precision during blasting tasks. The double side doors provide convenient access for handling bulkier items, streamlining the workflow.
| Specification | Details |
|---|---|
| Model Number | SB974 |
| Overall Dimensions (W x D x H) | 960 x 720 x 1500 mm |
| Door Size | Width: 580 mm; Min./Max. Height: 320/495 mm |
| Viewing Area | 580 x 270 mm |
| Operating Pressure | 60-125 psi |
| Air Consumption | 18-39 cfm |
| Air Inlet Size | 1/4" BSP |
| Dust Extraction Port Diameter | Ø64 mm |
| Net Weight | 64 kg |
The SB974 delivers consistent and effective cleaning performance, efficiently removing surface contaminants from various components. Its double-door design simplifies the handling of larger items, while the internal illumination and clear viewing area enhance user experience by providing excellent visibility during operation. The inclusion of a dust extraction port contributes to maintaining a cleaner work environment.
Q: What types of abrasive media are compatible with the SB974?
A: The SB974 is suitable for use with glass beads, silicon carbide, aluminium oxide, and shot blasting grit only.
Q: Does the SB974 come with any accessories?
A: Yes, the SB974 is supplied with a sand blasting gun and four ceramic nozzles.
Q: Is an air compressor included with the SB974?
A: No, the SB974 requires a standard, dry workshop air supply and does not include an air compressor. Users should ensure they have a compatible air supply to operate the cabinet effectively.
Q: Can the viewing screen be replaced if it becomes worn or damaged?
A: Yes, the SB974 features a replaceable viewing screen, allowing users to maintain clear visibility and extend the cabinet's service life.
Q: What are the power requirements for the internal illumination?
A: The internal illumination operates on low voltage supplied by an external power source. Users should refer to the included instructions for specific voltage and connection requirements.
