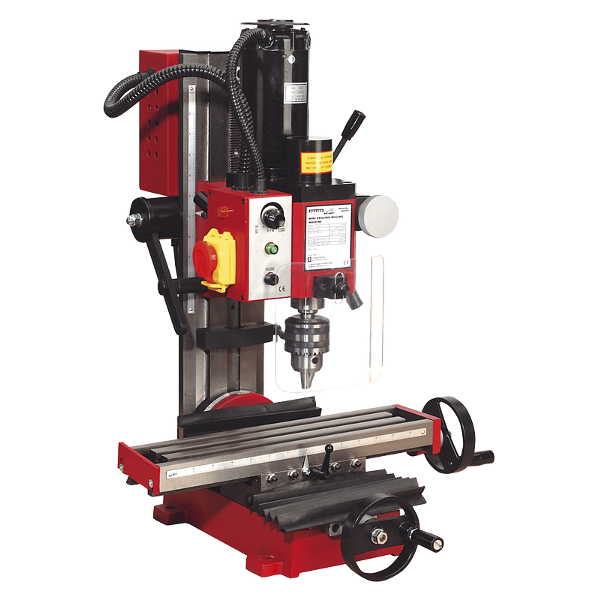

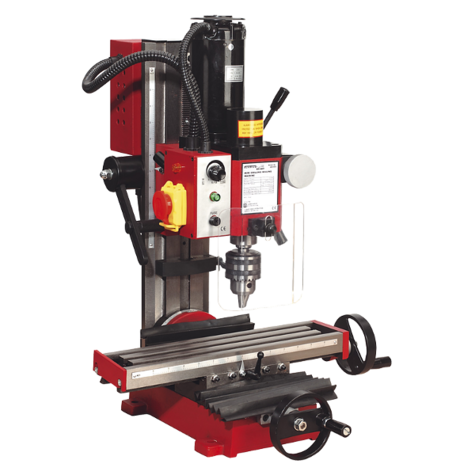

Sealey SM2502 Mini Drilling & Milling Machine

£1134.70
Mini Drilling & Milling Machine Sealey SM2502 Product code: SEA1819 £1134.70  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Mini Drilling & Milling Machine

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350Watt motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. Complies with Safety of Machinery (Safety) Regulations 1992 (and amendments) and is fully CE approved. An optional stand is available, order Model No. SM3002ST. See below for a comprehensive range of accessories.

Specifications

    • Make: Sealey
    • Model No: SM2502
    • Drilling Capacity: 13mm
    • Face Mill Capacity: 30mm
    • End Mill Capacity: 16mm
    • Headstock Travel: 180mm
    • Cross Axis: 100mm
    • Longitudinal Axis: 220mm
    • Spindle Tilt Angle: ±45°
    • Spindle Taper: MT3
    • Spindle Speed - Low Range: 0-1100rpm
    • Spindle Speed - High Range: 0-2500rpm
    • T-Slot: 12mm
    • Motor Power: 350W - 230V
    • Weight: 68kg
    • For Warranty see: Sealey Warranties
    • Standard delivery: 2-3 days
