Product Information

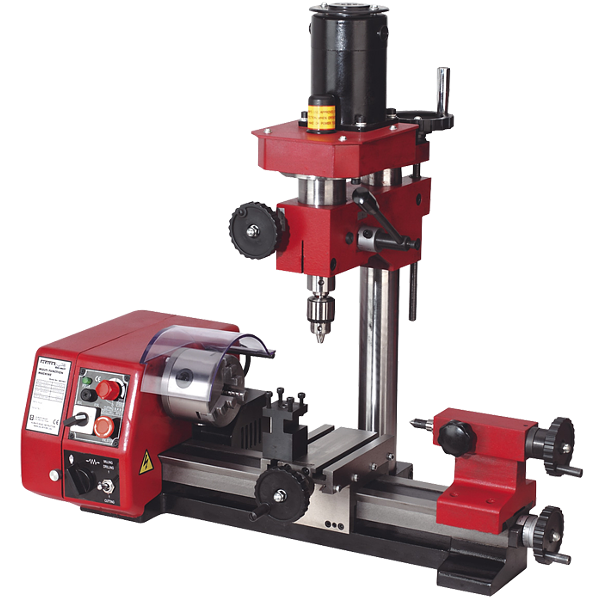

Mini Lathe & Drilling Machine

• Bench mounting, multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
• Features two 150Watt motors, one to operate the drill/mill and the other to power the lathe.
• The lathe cutting feed can be power driven or advanced manually.
• Thread cutting may also be undertaken with the optional thread cutting kit.
• Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
• Complies with Safety of Machinery (Safety) Regulations 1992 (and amendments) and is fully CE approved.
• An optional stand is available, order Model No. SM3002ST.

Specifications

• Make: Sealey
• Model No.: SM2503
• Cutting:-
• Swing Over Bed: 140mm
• Distance Between Centres: 250mm
• Spindle Hole Taper: MT2
• Cross Slide Travel: 61mm
• Tailstock Taper: MT1
• Spindle Speed (Variable): 100-2000rpm
• Range of Metric Threads: 5 Pitches (0.5-1.25mm)
• Drilling:-
• Maximum Drilling/Milling Capacity: 10mm
• Drilling/Milling Spindle Travel: 30mm
• Drilling/Milling Spindle Speed: 100-1300rpm
• T-Slot: 8mm
• Distance from Spindle to Table: 180mm
• Distance from Spindle Centre to Column: 100mm
• Motor Power: 2 x 150W - 230V
• Weight: 50kg
• For Warranty see: Sealey Warranties
• Standard delivery: 2-3 days
