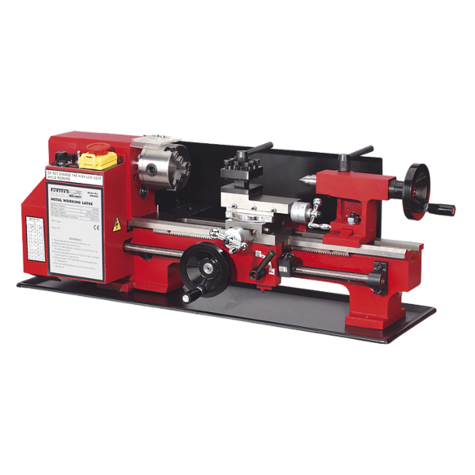

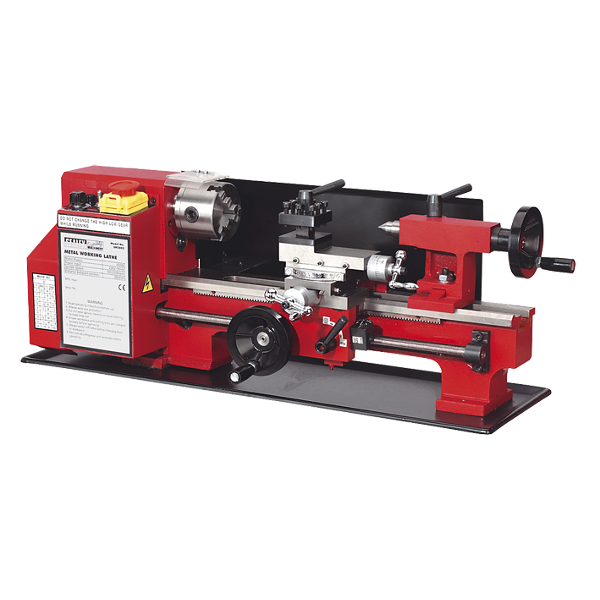

The Sealey SM3002 Metal Working Lathe is a precision-built machine tailored for small workshops, professional engineers, home enthusiasts, and model makers. Powered by a 300W motor, this compact lathe offers variable speed control and a reversible drive, facilitating both right and left-hand thread cutting. Its design ensures accurate metalworking operations, making it an ideal choice for detailed and intricate tasks.
Constructed with durability in mind, the SM3002 features a robust build that ensures stability during operations. The inclusion of a self-centring three-jaw chuck and a four-way tool post enhances its versatility. Additionally, the lathe is equipped with a swarf tray and a rear splash guard, promoting a cleaner and safer working environment.
| Specification | Details |
|---|---|
| Model Number | SM3002 |
| Motor Power | 300W - 230V |
| Spindle Speed Range | 100-2500rpm |
| Distance Between Centres | 300mm |
| Centre Height | 90mm |
| Maximum Workpiece Diameter | Ø180mm |
| Spindle Bore | Ø20mm |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Lead Screw | Metric |
| Dimensions (H x W x D) | 300 x 300 x 830mm |
| Nett Weight | 40kg |
The Sealey SM3002 delivers consistent and precise performance, making it suitable for a range of metalworking tasks. Users benefit from its variable speed control, allowing adjustments to match specific project needs. The inclusion of safety features, such as the emergency stop button and chuck guard, ensures a secure working environment. Its compact design does not compromise on capability, offering a balance between size and functionality.
Q: Is the Sealey SM3002 suitable for threading operations?
A: Yes, the lathe features a powered cutting facility that supports both right and left-hand thread cutting.
Q: Does the lathe come with safety features?
A: Yes, it is equipped with an emergency stop button and a chuck guard to enhance user safety during operations.
Q: What is the maximum workpiece diameter the lathe can accommodate?
A: The lathe can handle workpieces with a maximum diameter of Ø180mm.
