Probst Flieguan-Handy FXH-25 Lifter for use with Vacuum Cleaner
Product Information

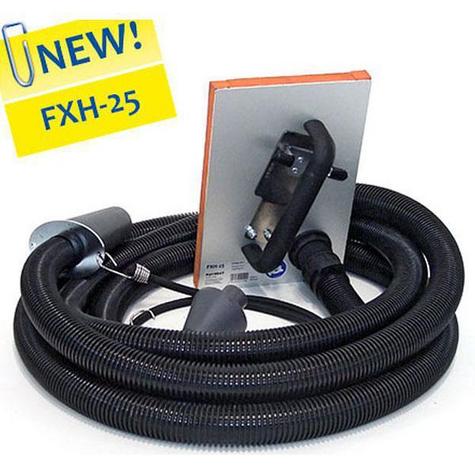

Probst Flieguan-Handy FXH-25 to attach to your Wet & Dry Vacuum Cleaner
Good at arranging tiles, the new vacuum hand laying device for tilers and landscape contractors allows easy and quick lifting, shifting and laying of tiles, natural stones and slabs with one hand.
The aluminium suction plate has a dead weight of less than 1 kg and can be connected to standard industrial vacuum cleaners by means of a feed hose and connecting cone (urgent: the wet/dry vacuum cleaner should be operated in wet mode).
With the 5 m feed hose supplied, the vacuum cleaner can remain in one place and there is no need to move it.
Simply place the FLIEGUAN-HANDY on the tile or slab and,with the vacuum, it automatically sucks in a matter of seconds.
The tile can be lifted from the stack immediately and brought to the placement location.
With a slight finger movement, a vacuum valve is opened to deposit the tile. Simply reclose it to pick up the slab again.
Use your industrial vacuum cleaner as a vacuum hand laying device on the construction site
Features
- Laying of large tiles and slabs in a way that is gentle on the back
- Considerably easier laying, as there is no need to grip on the side, especially for the last slab
- Wall tiles are much easier to lay with one hand
- Easy removal and insertion of the tile, e.g. to correct adhesive application
- Less risk of edge damage, as laying is more precise and with a better view
- Virtually every tiler has industrial vacuum cleaners on location, for vacuum generation
Specifications
- Part No. 59500001
- Working Load Limit WLL kg (Ibs): 25kg (55)
- Type Suction Plate dimension mm (in): approx. 280mm x 190mm (11 x 7½")
- Dead Weight Suction plate kg (Ibs): 0,85kg (2)
