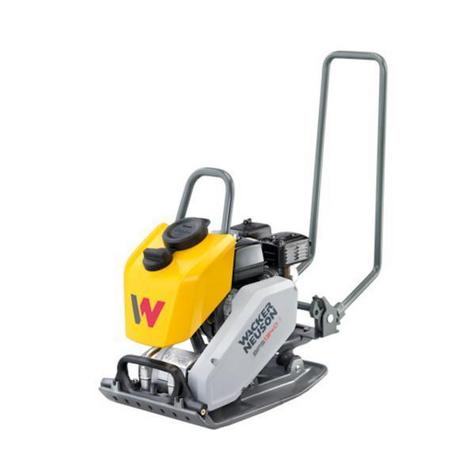

The Wacker Neuson BPS1550BW is a heavy-duty single-direction plate compactor with an integrated water sprinkler system, making it ideal for asphalt compaction, base layers, and block paving preparation. The wide 500 mm base plate and 15 kN compaction force deliver maximum productivity, while the water system ensures clean surface results on hot mix applications.
This model features a 9 mm thick cast iron base plate designed for extended service life and minimal marking on turns. The integrated 10.4 L water tank is seamlessly built into the frame, with flow control for the sprinkler bar to suit different site conditions. The vibration-isolated handle and low HAV level enhance user comfort, while maintenance-free components reduce operating costs.
| Specification | Details |
|---|---|
| Model / Part Number | BPS1550BW / 5100066076 |
| Power Source | Petrol |
| Engine Type | Briggs & Stratton XR750 |
| Engine Displacement | 163 cm³ |
| Effective Power Output | 3.6 kW @ 3,600 rpm |
| Centrifugal Force | 15 kN |
| Vibration Frequency | 98 Hz |
| Operating Weight | 89.5 kg |
| Base Plate Width | 500 mm |
| Base Plate Length | 599 mm |
| Plate Thickness | 9 mm |
| Forward Travel Speed | 25 m/min |
| Gradeability | 36.4 % |
| Hand-Arm Vibration (HAV) | 4.1 m/s² |
| Sound Pressure Level (LpA) | 95 dB(A) |
| Guaranteed Sound Power (LwA) | 108 dB(A) |
| Water Tank Capacity | 10.4 L |
In use, the BPS1550BW performs reliably across a variety of compaction tasks, especially when working on asphalt or other sticky materials. The water system ensures consistent surface moisture to prevent sticking and maintain smooth finishes. The wide base plate improves area coverage and efficiency, while the ergonomic design allows for controlled operation over extended periods. This model is ideal for professional contractors seeking high-quality results and durable equipment.
Q: Is the water flow adjustable?
A: Yes, the flow can be regulated via an integrated control valve depending on the job and material.
Q: Can this machine compact block paving?
A: Yes, it is suitable for use on sub-bases and final compaction of paving layers when used with an optional paving mat.
Q: Does it require frequent maintenance?
A: No - it features sealed bearings and a robust drive system designed to reduce service intervals and maximise uptime.
