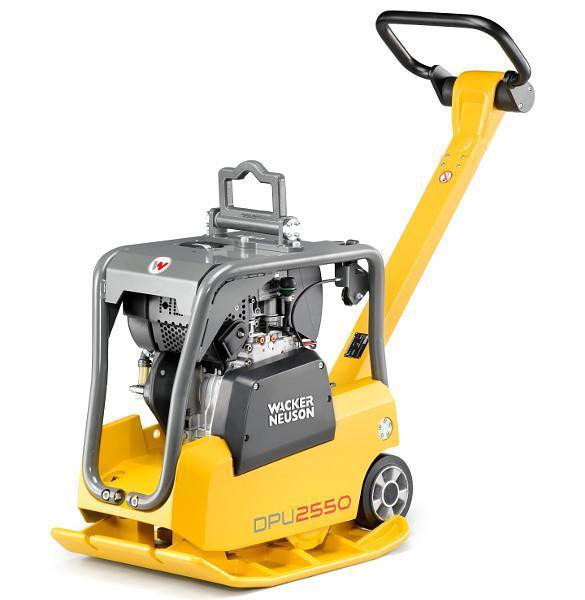

The Wacker Neuson DPU2550H is a diesel-powered reversible plate compactor designed for efficient compaction tasks in confined spaces. Ideal for base preparation, gardening, landscaping, and maintenance work on streets, roads, and parking lots, this machine offers excellent maneuverability and performance.
Constructed with a robust base plate, the DPU2550H ensures durability even under extreme conditions, providing a long service life. Its compact dimensions and low machine height (736 mm) allow operation under lateral struts in trench shoring, enhancing its versatility on various job sites. The integrated, sturdy transport gear facilitates easy movement on the construction site.
| Specification | Details |
|---|---|
| Model Number | DPU2550H |
| Engine Model | Hatz 1B20 |
| Power Source | Diesel |
| Engine Type | Air-cooled, 4-stroke, single-cylinder |
| Displacement | 0.243 liters |
| Net Power Output | 3.5 kW (4.7 HP) @ 3,600 rpm |
| Centrifugal Force | 25 kN (5,620 lbf) |
| Operating Weight | 166 kg (366 lb) |
| Base Plate Thickness | 10 mm (0.4 in) |
| Working Width | 500 mm (19.7 in) |
| Frequency | 90 Hz |
| Advance Travel Speed | 17 m/min (0.94 fps) |
| Surface Capacity | 510 m²/h (5,490 ft²/h) |
| Fuel Tank Capacity | 3.0 liters (0.79 US gal) |
The DPU2550H delivers high-quality compaction with minimal operator fatigue, thanks to its specially designed shock-mount system that offers a virtually vibration-free guide handle. Its easy-access throttle control simplifies operation, enhancing overall user experience. The compact design and integrated wheel set make transportation and maneuverability on-site straightforward and efficient.
Q: What type of engine powers the DPU2550H?
A: The DPU2550H is powered by a Hatz 1B20 diesel engine, an air-cooled, 4-stroke, single-cylinder engine with a displacement of 0.243 liters and a net power output of 3.5 kW (4.7 HP) at 3,600 rpm.
Q: What is the centrifugal force generated by this compactor?
A: The DPU2550H produces a centrifugal force of 25 kN (5,620 lbf), ensuring deep and efficient compaction across various ground types.
Q: Is this machine easy to transport?
A: Yes, it features an integrated wheel set for easy transportation around the job site, making it convenient to move between work areas.
Q: What applications is this compactor best suited for?
A: This model is ideal for base preparation, landscaping, gardening, and maintaining roads, streets, and parking areas.
