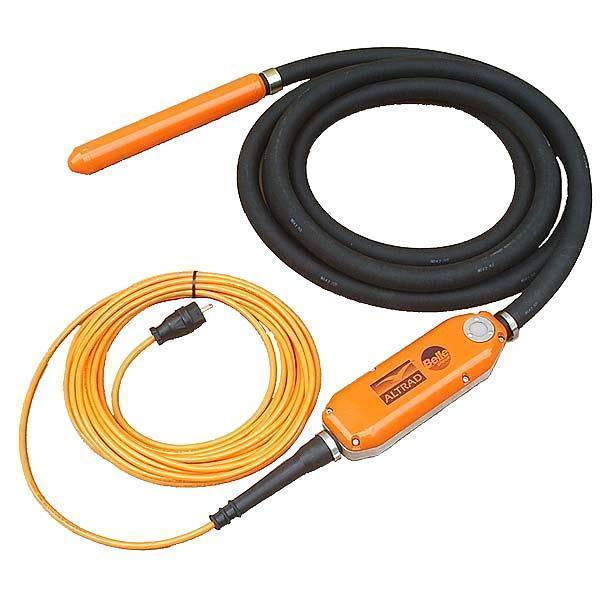

The Altrad-Belle BVP18 Vibratech+ is a heavy-duty, high-frequency electronic poker designed for the most demanding construction environments. Featuring a 58mm diameter head and a 7-meter abrasion-resistant hose, it ensures efficient consolidation of deeply poured concrete, making it ideal for large-scale projects.
Constructed with durability in mind, the BVP18 boasts a die-cast moulded aluminium housing with chamfered edges. Its robust design ensures reliable operation under tough site conditions, while the long-life motor requires minimal maintenance. The inclusion of an LED operation and fault display enhances user convenience and operational safety.
| Specification | Details |
|---|---|
| Model Number | BVP18 |
| Power Source | Corded Electric |
| Voltage / Frequency | 110V / 50-60Hz |
| Poker Head Diameter | 58mm (2.3 inches) |
| Poker Head Length | 410mm |
| Hose Length | 7m |
| Cable Length to Switch | 15m |
| Vibrations per Minute | Up to 12,000 |
| Centrifugal Force | 5,075 N |
| Input Current | 3.0 A |
| Vibration Level | 1.99 m/secē |
| Weight | 19 kg |
The BVP18 delivers high-frequency vibrations at up to 12,000 vibrations per minute, effectively removing air pockets and ensuring optimal concrete compaction. Its extended hose and cable lengths provide users with the flexibility to operate efficiently across expansive work areas, enhancing productivity and reducing the need for frequent repositioning.
Q: Does the BVP18 require an external frequency converter?
A: No, the BVP18 features an integrated in-line converter, eliminating the need for an additional external power source.
Q: What is the recommended power supply capacity for optimal operation?
A: A minimum of 2.5kVA continuous or 5kVA intermittent power supply is recommended for optimal performance.
Q: Is the hose length sufficient for deep concrete pours?
A: Yes, the 7-meter abrasion-resistant hose is designed for deeply poured concrete, ensuring effective vibration throughout the pour depth.
Q: How does the LED operation/fault display enhance usability?
A: The LED display provides real-time feedback on the operational status of the poker, alerting users to any faults and ensuring timely maintenance or adjustments.
